Connect Pneumatic Down Force Air Compressor Remote Air Filter Hose

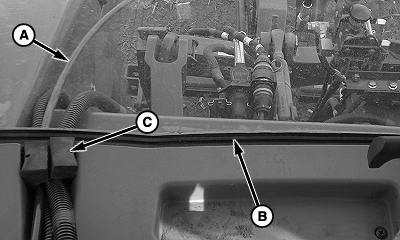

  1. A71714
    A71714-UN-03JUN11

    A - Filter Hose

    B - Rear Window

    C - Grommet

    Route filter hose (A) through tractor rear window (B).


  2. Install filter hose (A) in grommet (C).

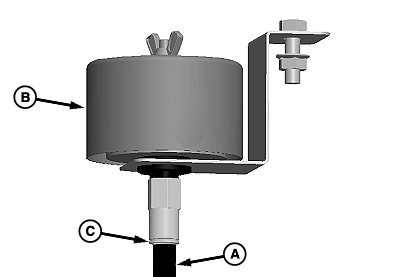

  3. A71709
    A71709-UN-03JUN11

    Install filter hose (A) in air filter assembly (B), push in ring (C) on fitting and push filter hose into fitting approximately 17 mm (11/16 in.).

OUO6064,00004F3-19-20110603
