Liquid Fertilizer Rate Charts For Non-Injection Openers (Frame and Unit mounted)

A47814
A47814-UN-02AUG01

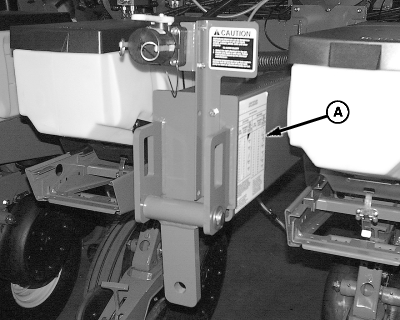

A - Chart

The in-line orifice size recommendation chart (A) can be affected by many factors including travel speed, ambient temperature, and product used. The objective is to keep the system pressure between 103—621 kPa (1.0—6.2 Bar) (15—90 psi). DO NOT EXCEED 689 kPa (6.9 bar) (100 psi).

NOTE: To change application rate (GPA) - change pump setting.

NOTE: To change system pressure - change in-line orifice size and/or change travel speed.

OUO6064,00006B4-19-20120313
