Liquid Fertilizer For Unit Mounted Double Disk Openers

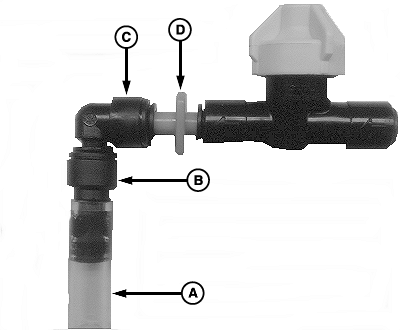

A74057-UN-19JAN12
A - 3/8 in. Hose
B - 10 mm Stem to 8 mm Tube Fitting
C - 5/16 in. Stem To 5/16 in. Tube, 90 Degree Fitting
D - Orifice
Utilize the in-line orifice for unit mounted double-disk openers. The orifice is inserted into the check valve then into the fittings described in picture. Use liquid fertilizer rate charts for non-injection openers for the desired application rate. (See RATE CHARTS in the Liquid Fertilizer Rate Charts For Non-Injection Openers section.)
|
Unit Mounted Double Disk Orifice Reference Chart |
|
|---|---|
|
Orifice |
Orifice Size |
|
Green |
0.70 |
|
Yellow |
1.2 |
|
Black |
1.7 |
|
Grey |
2.5 |
|
OUO6064,00006F5-19-20120119 |
