Install Double Eliminator for ProMax 40, Small Sweet Corn, or Edible Bean Disks

A60576
A60576-UN-09AUG07

A60577
A60577-UN-09AUG07

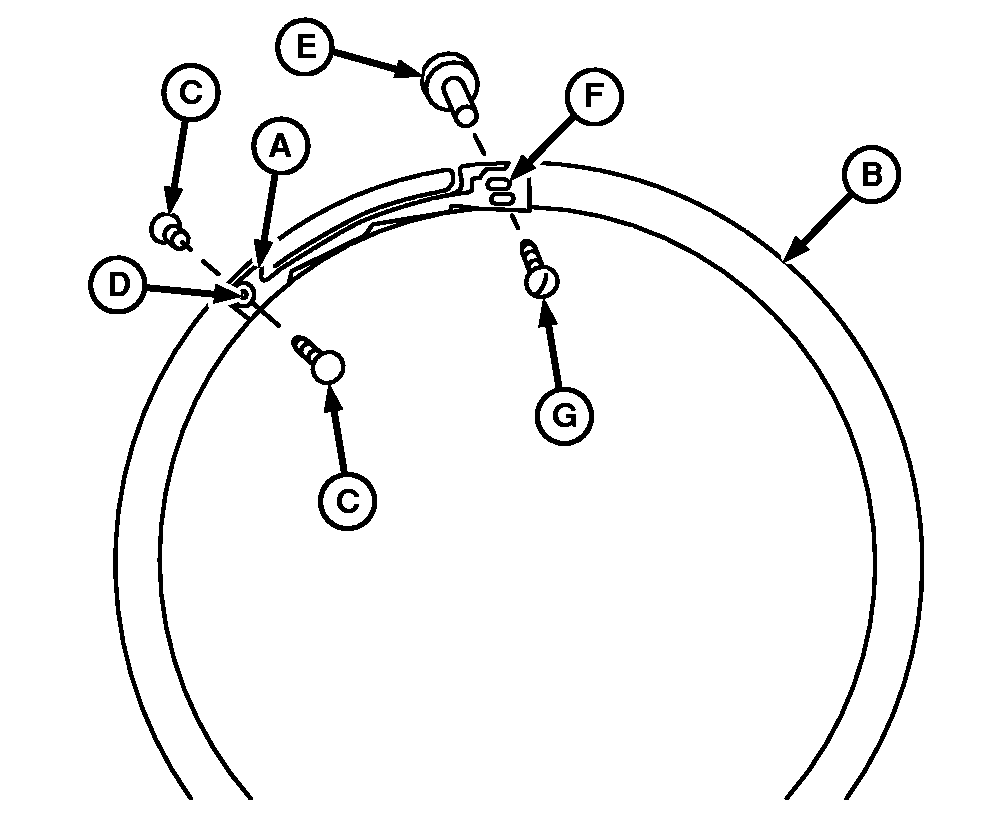

A - Double Eliminator Cam

B - Housing

C - Fasteners

D - Hole, Dual-Lock Fastener

E - Cam Nut

F - Hole, Edible Bean

G - Screw

H - Hole, ProMax 40, or Small Sweet Corn

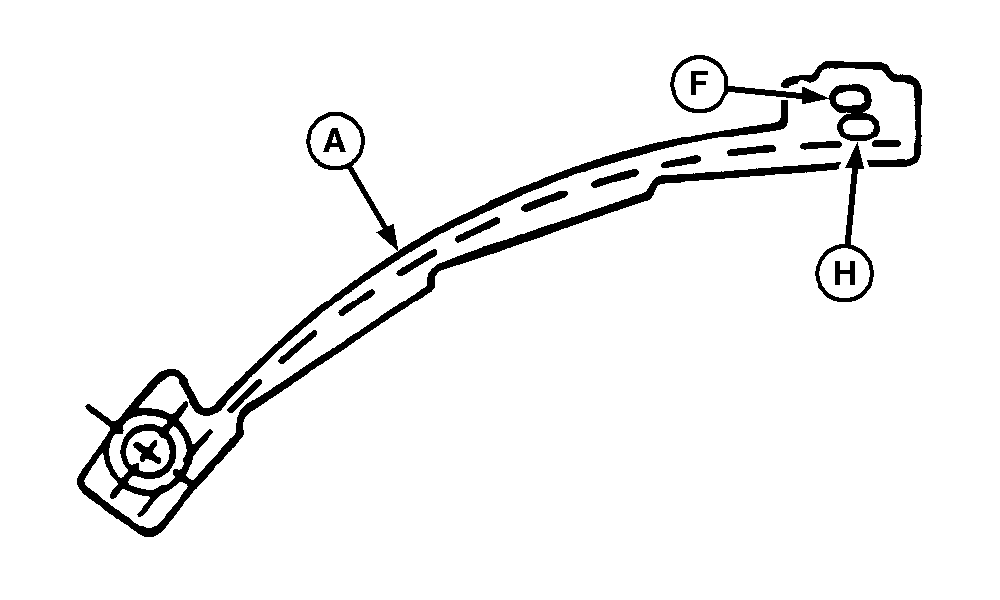

Double eliminator (A) is used to remove one of two seeds covering a single hole in disk. The ridged design and slotted holes allow gradual coverage of hole in disk.

Hole (H) is used for ProMax 40 and small sweet corn disk. Hole (F) is used for the edible bean disk.

  1. Open vacuum meter. See ACCESS THE VACUUM METER in this section.

  2. Remove meter from hopper. Save wing nuts.

  3. Install double eliminator (A) in housing (B).

  4. Insert dual-lock fasteners (C) through housing and hole (D) of double eliminator (A).

  5. Insert cam nut (E) and screw (G) through hole (F) or (H) (depending on seed disk). DO NOT tighten.

OUO6074,000083C-19-20100707
