Install Pro-Series™ XP Seed Meter Assembly on Row Unit

1.
   A62347-UN-27MAR08

   Locked Symbol Up


   A53368-UN-20NOV03


   A68526-UN-30JUL10


   A62741-UN-26JUN08


   A53371-UN-22DEC03

   A - Hopper Fill Neck

   B - Alignment Notch

   C - Cap Screw

   D - Drive Cable

   E - Gearbox Housing

   F - Lock Pin

   G - Alignment Pin

   H - Hook

   I - Latch

   J - Clip

   K - Vacuum Hose

   L - Clip

   M - Electrical Connector

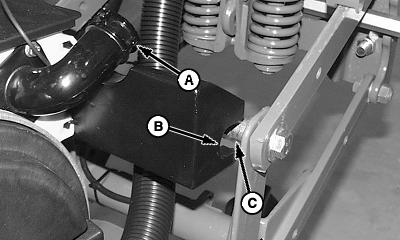

   Push hopper alignment notch (B) over cap screw (C) (both sides).

---

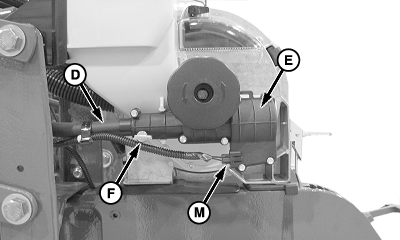

2. Push Pro-Shaft Drive cable (D) into gearbox housing (E) while rotating meter down.

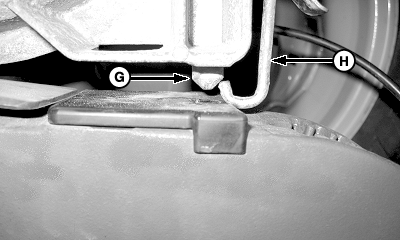

3. Verify alignment pin (G) on bottom of meter is aligned with hole on row unit and hook (H) is latched into row unit.

4. Position hook (H) as shown and lower latch (I) until clip (J) snaps, securing latch.

5. Rotate lock pin (F) 180 degrees until the “locked” symbol is on top.

6. Push CCS seed delivery hose onto hopper fill neck (A) and rotate clockwise until it snaps into place.

7. Install vacuum hose (K).

8. If row is monitored for vacuum pressure, push sensor hose on fitting and push clip (L) sideways to lock hose onto fitting.

9. Connect electrical connector (M) to gearbox housing (if equipped).
