Adjust Meter Hub

A51176
A51176-UN-19NOV02

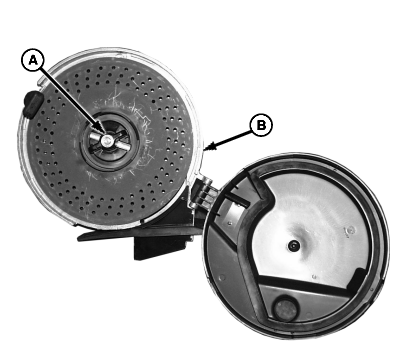

A - Hub Handle

B - Housing

Improve meter accuracy and minimize seed damage with a properly adjusted meter hub. Check this adjustment whenever seed disks are changed. If there is a gap between seed disk and meter housing (B) or if disk is difficult to turn, adjust meter hub as follows.

  1. Open vacuum meter.

  2. Turn hub handle (A) counterclockwise. Remove seed disk.

  3. A51320
    A51320-UN-02DEC02

    H44310
    H44310-UN-14APR92

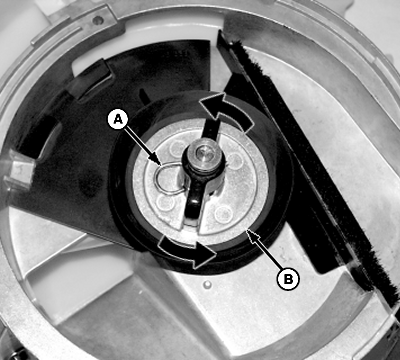

    A - Spring Clip

    B - Hub

    C - Meter Drive

    Remove spring clip (A).


  4. Adjust hub (B).

    • Make small adjustments.
    • Hold meter drive (C).
    • Thread hub (B) clockwise to move seed disk closer to meter housing.
    • Thread hub (B) counterclockwise to move seed disk away from meter housing.

  5. Align slot with hole in shaft and install spring clip (A).

  6. A61059
    A61059-UN-16OCT07

    A44241
    A44241-UN-19NOV97

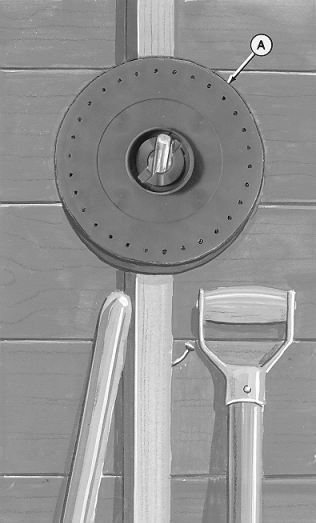

    Storage

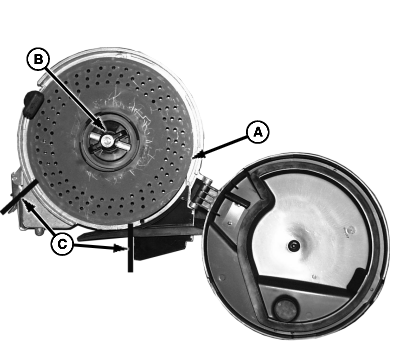

    A - Seed Disk

    B - Hub Handle

    C - Area

    Install seed disk (A) and lock hub handle (B).


  7. Inspect adjustment.

    1. Spin and release disk rapidly by hand.

    2. Observe distance disk rotates. If disk rotates approximately one revolution and stops, hub is adjusted properly.

    3. Repeat hub adjustment until correct.

  8. IMPORTANT: Avoid warped disks. Do not store disks in meters. Store disks flat on hub or hang on wall from hub. Do not store under heavy items or hang from seed hole. Store away from high heat and sunlight.

    Rotate disk slowly by hand and observe disk contact with housing in area (C). If a gap appears as disk is rotated, replace disk.
