Low Pressure Case Drain Connection
IMPORTANT: Avoid damage to fan motors, equip tractor with a low-pressure drain connection less than 172 kPa (1.72 bar) (25 psi). See Case Drain Connection Kits table.
IMPORTANT: Use the connection kits listed in table on John Deere tractors. If low-pressure drain connection kit is already installed, ensure that it matches what is listed on table.

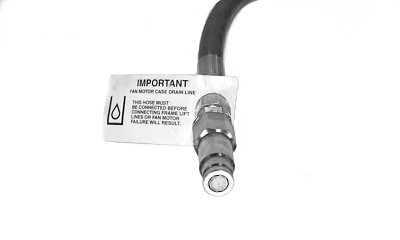

A53392-UN-25NOV03
Flush Face Case Drain Hose Tip
Order one of the following kits for a John Deere tractor. For other tractors, see tractor dealer for a suitable connection kit.NOTE: John Deere Connection Kits include Installation Instructions.
|
Case Drain Connection Kits |
|
|---|---|
|
Tractor Model |
Kit Number |
|
6000 and 10 Series 7420 and 7520 Series with serial numbers (- 12451) |
BA302161 |
|
6020, 7220, 7320, 7420, 7520 Series |
AL169965 |
|
6030 Series, 6R |
RE228000 |
|
6D Series |
SJ288860 |
|
7200, 7400, 7600, 7700, 7800 and 10 Series |
BA302181 |
|
7720, 7820 and 7920 Series |
RE211441 |
|
7030 Small Frame and Premium Tractors |
RE228000 |
|
7030 Large Frame Tractors |
RE211441 |
|
7R Series Tractors |
RE327561 |
|
8000, 8000T, 8010, 8010T, 8020, 8020T, 8030, 8030T, 8R, and 8RT Series |
RE222721 |
|
9000, 9000T, 9010, 9010T, 9020, 9020T, 9030 and 9030T Series |
RE218665 |
|
9R and 9RT Series |
RE299261 |
|
1 Order through service parts.
|
OUO6074,0000968-19-20120606 |
