Removing From Storage

IMPORTANT: Do not use chain lube or any other heavy petroleum base lubricant that may cause a buildup of dust or dirt in the sprocket or gear teeth.

Before using machine after it has been stored, inspect seed hoppers for cleanliness to be certain seed will flow from hoppers freely.

Thoroughly inspect machine for loose parts and adjust as necessary.

IMPORTANT: High pressure washers can damage electrical components, bearings, hoses and/or hoppers if direct contact is applied. Use caution, if power washing machine.

A54030-UN-08MAR04

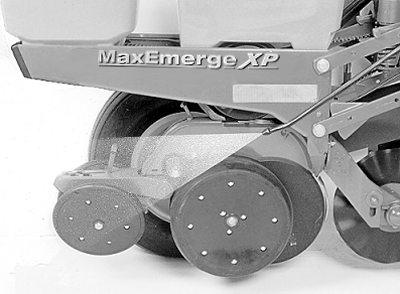

When roller chains remain unused for several days, moisture in the air will accumulate on chain, causing chain to rust. This can and will become serious enough in time to cause the chain joints to become stiff, restricting their normal free movement. While very difficult to detect, this stiffness can cause the chains to operate abnormally and disturb the smooth rotation of important meter components causing deterioration in performance.

If machine is not used for several days or if oil has been removed from chains while cleaning the machine, thoroughly lubricate chains with John Deere Multipurpose Spray Lube TY6350.

A38723-UN-27NOV95

A38361-UN-27NOV95

A - Pesticide Drive Chain

B - Seed Meter Drive Chain

C - Pesticide Drive Sprocket

D - Drive Disconnect Knob

When lubricating pesticide drive gears, move drive disconnect knob (D) back and forth while spraying to help loosen any paint or dirt buildup and allow gears to turn freely.

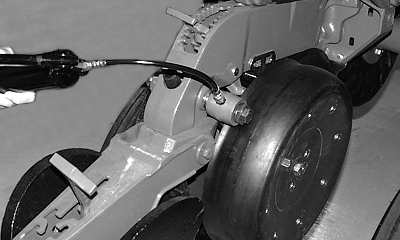

The meter drive shaft and seed meter should turn freely by hand. Rotate drive shaft forward only, as assemblies are not designed to rotate in reverse.

Adjust machine for planting conditions to be encountered.

A53141-UN-04NOV03
