Operating CCS System When Planting Sorghum and Small Popcorn

  1. IMPORTANT: Remove nozzle inserts (A) before switching to crop with larger seed. Larger seed will not come out of tanks with nozzle inserts installed. Tanks will then have to be drained, nozzle inserts removed, and refilled.

    NOTE: Nozzle is recommended for sorghum.

    NOTE: Cotton seeds that are especially small in size can require nozzle inserts and discharge elbows.

    A50710
    A50710-UN-17OCT02

    Nozzle Inserts

    A60389
    A60389-UN-02JUL07

    A51048
    A51048-UN-08NOV02

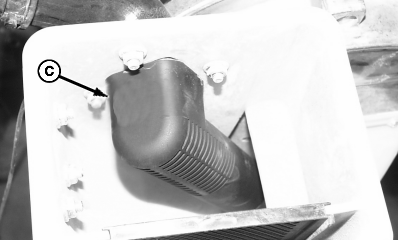

    Elbow - Sorghum

    A - Nozzle Inserts (A73214)

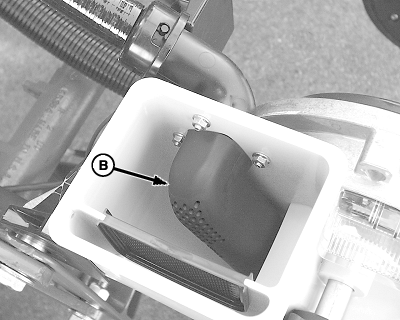

    B - Elbow (A75164)

    C - Elbow (Sorghum) (A75165)

    Install nozzle inserts (A) over all nozzles prior to filling tank.


  2. NOTE: Changing elbows is optional for small popcorn.

    Remove elbow (B) with small holes from mini hoppers.

  3. Install elbow (C) with slotted holes in mini hoppers.

OUO6074,0000B2A-19-20110517
