Select Correct Vacuum Meter Brush

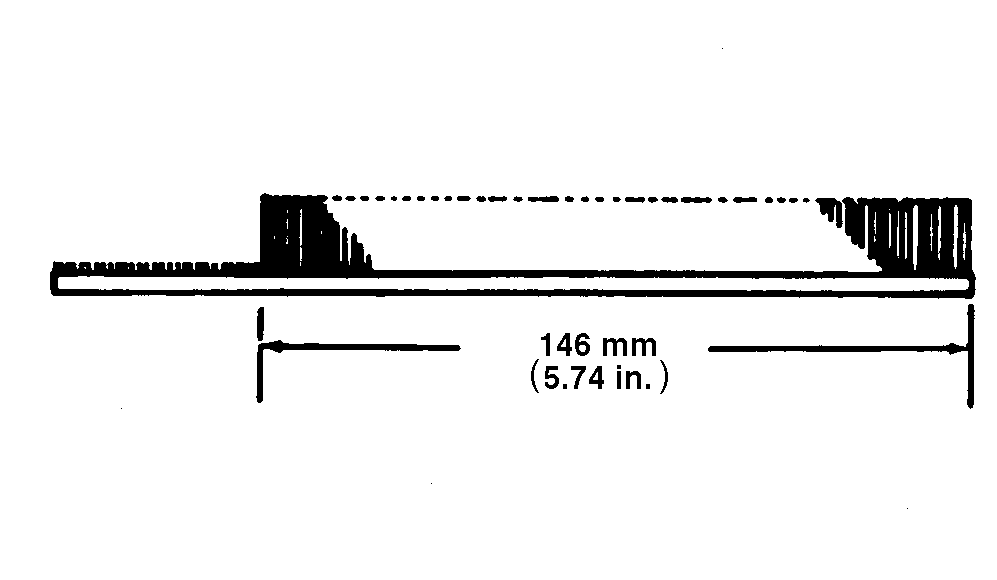

A45377
A45377-UN-21SEP00

Short Brush

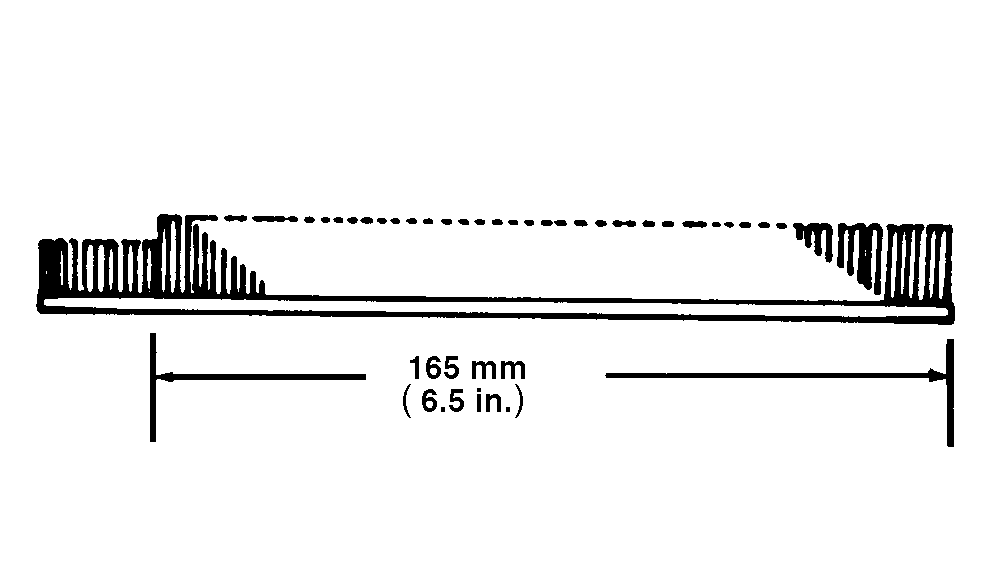

A45378
A45378-UN-21SEP00

Regular (Long) Brush

An incorrect vacuum meter brush can cause under population of edible beans, peanuts, and hilldrop cotton.

Two vacuum meter brushes are available:

  • Use short brush for medium and large edible beans, peanuts, and four cell hilldrop cotton disks.
  • Use regular (long) brush for all other crops.

Refer to METER SETTINGS in this section for brush selection recommendations.

OUO6074,0000C02-19-20100713
