Adjusting MaxEmerge™XP Seed Cable Drive Mechanism

1.
   A54202-UN-07APR04


   A54203-UN-07APR04


   A54204-UN-07APR04

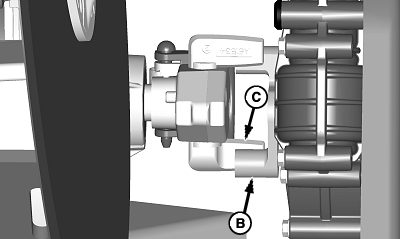

   Drives Out Of Alignment


   A54234-UN-07APR04

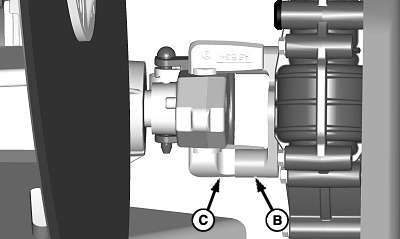

   Drives In Alignment

   A - Nuts

   B - Drive Lugs

   C - Meter Tabs

   It may be necessary to align sprockets with drive mechanism on meter.

---

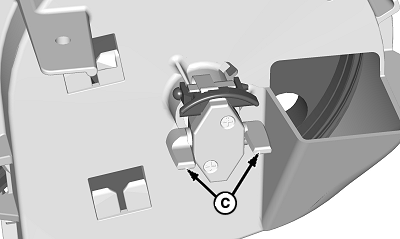

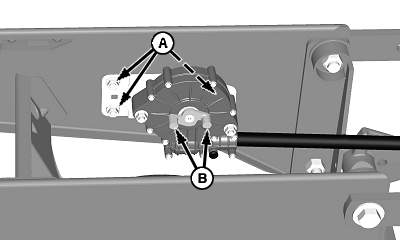

2. Loosen nuts (A) and adjust sprocket assembly so drive lugs (B) align with meter tabs (C).

3. Install hoppers and use a small mirror to check alignment of drives.

4. When meter drive is misaligned, drive lugs (B) can be seen outside meter tabs (C) as shown.

5. When meter drive is properly aligned, drive lugs (B) and meter tabs (C) are in line as shown.
