MaxEmerge™XP 106 L (3.0 Bu) Hopper Latch

A48635
A48635-UN-01FEB02

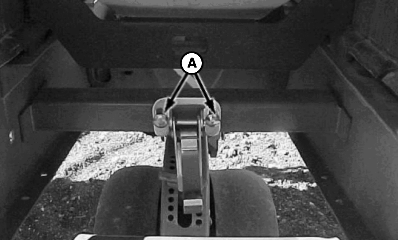

106 L (3.0 bu) Hopper Latch

A - Cap Screws

Every 100 hours, check latches on 106 L (3.0 bu) hoppers to make sure they latch tight. If latches are loose, loosen latch cap screws (A) and adjust latch.

OUO6074,0000C52-19-20040430
