Operating CCS System When Planting Standard Seed Sizes

1.
   A50710-UN-17OCT02

   Covers


   A54896-UN-22SEP04

   Black Discharge Elbow


   A54897-UN-22SEP04

   Gray Discharge Elbow

   A - Cover

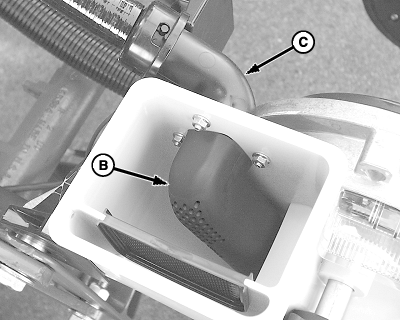

   B - Black Discharge Elbow (Standard)

   C - Single Inlet Elbow

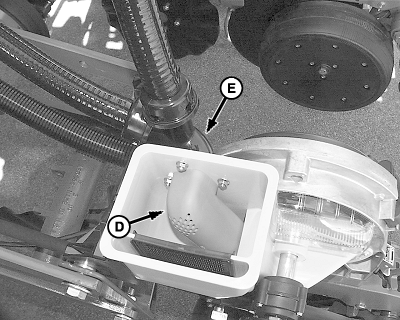

   D - Gray Discharge Elbow (Splitter)

   E - Splitter Inlet Elbow

   Remove covers (A). Larger seeds will not come out of tanks with covers installed.

---




2. Install black discharge elbow (with small holes) (B) on rows with single inlet elbow (C).

3. 36 Row or Larger Machines Only: Install gray discharge elbow (with small holes) (D) on rows with splitter inlet elbows (E) and rows fed by hose from splitter inlet elbows.
