Install and Remove Standard Flush Face Seed Tubes

1.
   A59900-UN-02APR07


   A53298-UN-03NOV03


   A59901-UN-02APR07

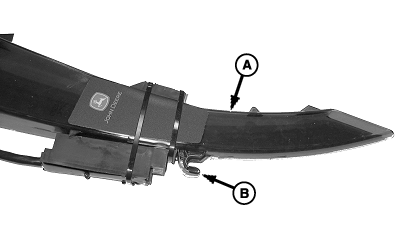

   A - Seed Tube

   B - Hook

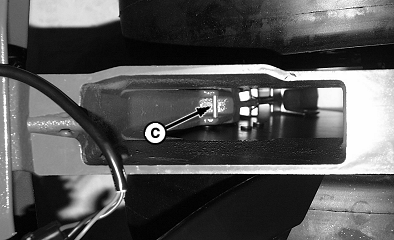

   C - Pin

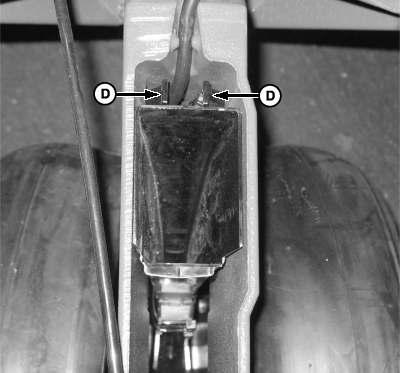

   D - Tabs

   Connect monitor harness to sensor harness.

---




2. NOTE: Place harness connector inside planting unit at same time as seed tube.

   Insert seed tube (A) into planting unit so the hook (B) locks on alignment pin (C).

3. Position seed tube so tabs (D) lock into holes.

4. To remove seed tube, squeeze tabs with fingers until they release from casting. Pull upward.
