Vacuum Level for Sugar Beet Seed

IMPORTANT: The proper vacuum level must be calculated for each seed size.

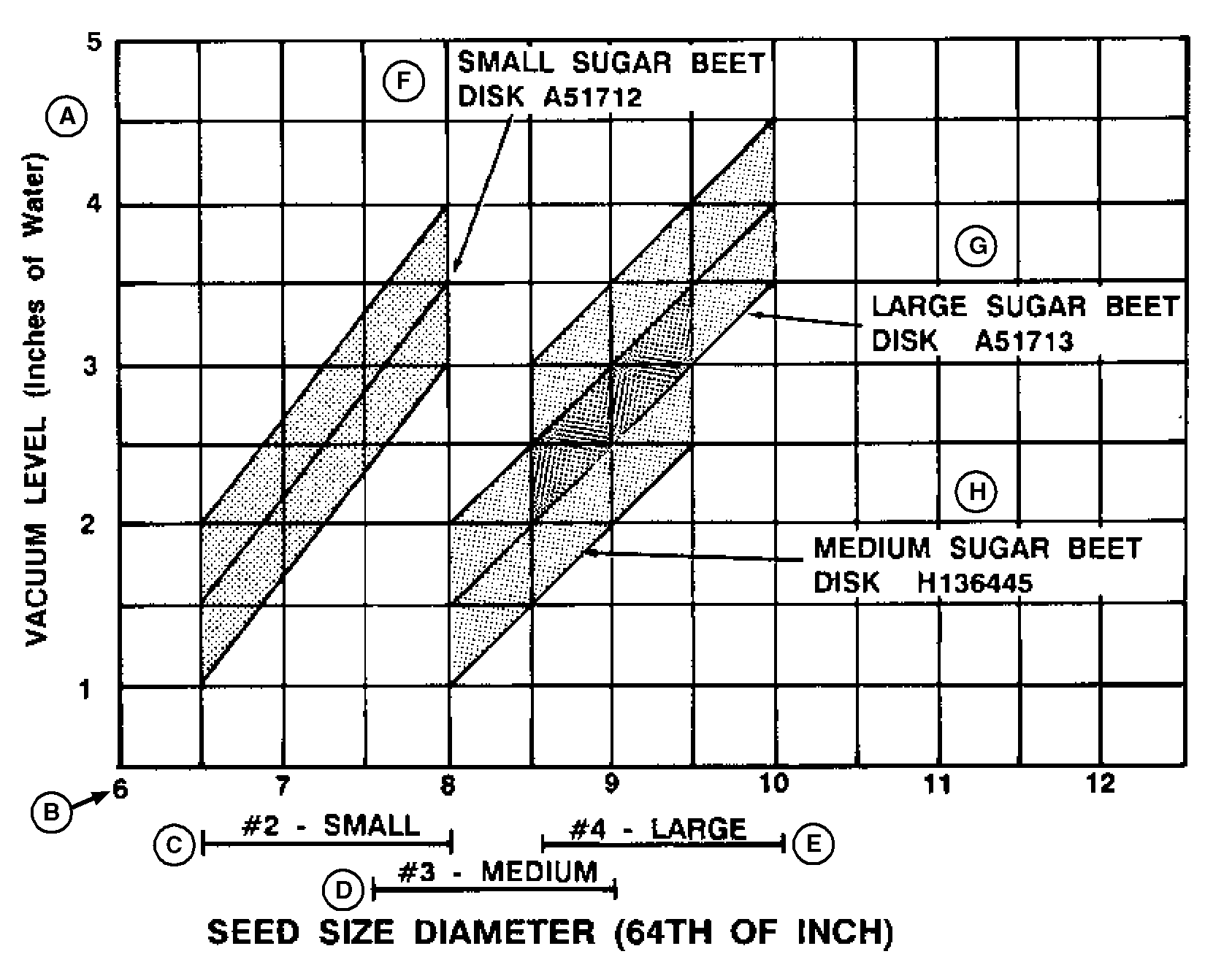

A60561-UN-07AUG07

A - Vacuum Level (Inches of Water)

B - Seed Diameter (per 64th of an inch)

C - Small Seed

D - Medium Seed

E - Large Seed

F - Small Sugar Beet

G - Large Sugar Beet

H - Medium Sugar Beet

IMPORTANT: Vacuum levels are a starting point. Perform a field check and adjust level to obtain proper population.

EXAMPLE: If bag label indicates a medium seed diameter of 7.5/64 in. to 9/64 in. Set vacuum level between 1.5 in. to 2.5 in. with Medium Sugar Beet Disk.
