Clean Carrier Tank Strainer

1.

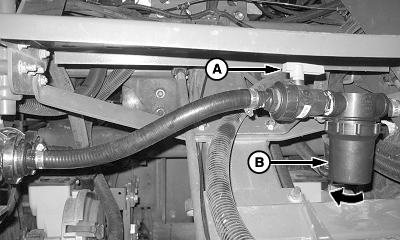

   A58826-UN-21SEP06

   Valve Shown in Open Position

   A - Handle

   B - Strainer Cap

   Rotate valve handle (A) horizontally to shut off water supply to carrier pump.

---




2. Remove strainer cap (B).

3. Remove strainer and clean it in fresh clean water.

4. Reinstall strainer and strainer cap (B).

5. Rotate valve handle (A) to open water supply to carrier pump.

6. Prime carrier pump. See Central Insecticide System Operator’s Manual for PRIME CARRIER PUMP procedure.
