Pro-Series™XP Vacuum Meter Inspection and Service

Annually inspect seed meter for wear and chemical or seed treatment buildup.

1.

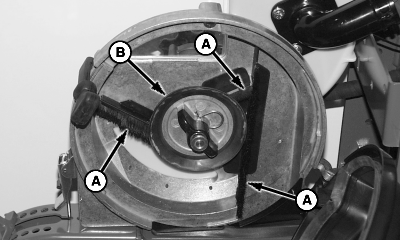

   A49938-UN-20AUG02

   Vacuum Meter Shown

   A - Brushes

   B - Hub Seal

   Check brushes (A) for gaps. If gaps are big enough to allow seed to pass through, replace brush.

---




2. Replace hub seal (B) if cracked or weathered.

3. NOTE: Before replacing seed disks, perform a field check to determine if disk is metering seeds accurately. See Checking Seed Population section.

   If meter performance is satisfactory, it is not necessary to replace seed disk.


   A55426-UN-22NOV04

   A - Wear Example

   B - Worn Edge (Side View of Seed Cell)

   C - Wear Example

   D - Wear Example

   Check seed disks for wear in following areas and replace disk as needed.

   A small amount of wear around perimeter of disk (A) is acceptable. If wear occurs, verify that no seed loss occurs through gap between disk and housing.

   Adjust meter hub to avoid seed loss. See ADJUST METER HUB in Vacuum Meter Setup section.

   Inspect individual seed cells. Seed abrasion can cause sharp corners on cells to wear. Worn edges (B) increases the cell size. Worn seed cells can result in overpopulation when planting small seed or under-population when planting large seed. Replace seed disk if cell size are increased and field checks determine a reduction in accuracy.

   Small grooves or scratches are acceptable on vacuum side of seed disk (C).

   Wear around perimeter of disk (D) is acceptable up to an approximate depth of 1.0 mm (3/64 in.).

---




4. NOTE: If vacuum seals are replaced, apply Spray on Graphite Lubricant TY25797 on vacuum side of used seed disks. New seed disks are factory lubricated.


   A51188-UN-19NOV02

   A - Seals

   B - Wiper

   Replace vacuum seals (A) if seed disks are replaced or when large cracks or wear areas are visible.

---




5. Replace seed-disk wiper (B) if edge of wiper is grooved or excessively worn.

6. CAUTION:

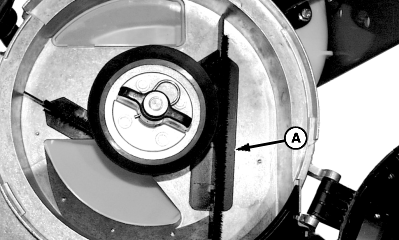

   A51323-UN-03DEC02

   A - Plastic

   Follow chemical manufacturer's precautions when handling parts coated with seed treatments. Use proper skin, eye, and respiratory protection.

   NOTE: Thoroughly clean seed disk cell area and remove any excessive treatment buildup behind plastic (A) in vacuum meter housing.

   Annual cleaning of vacuum meters and seed disks is recommended. Use mild detergent and a soft brush.

---




7.

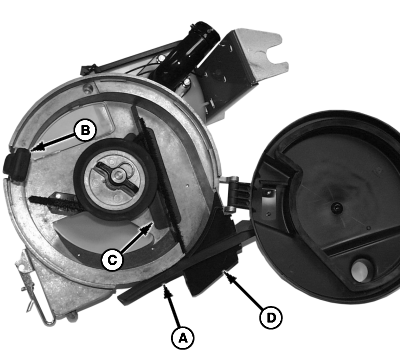

   A49940-UN-20AUG02

   Vacuum Meter Shown

   A - Dust Cover

   B - Rubber Handle

   C - Plastic Insert

   D - Chute Cover

   Replace vacuum meter dust cover (A) if it does not fit properly, is cracked, or is weathered.

---




8. Inspect rubber handle (B) and replace if cracked or broken.

9. Inspect plastic insert (C) and chute cover (D). Replace if worn.
