Tightening Wheel Bolts

IMPORTANT: Check torque on wheel lug nuts before operation, after initial 10 hours of use and after every 50 hours.

NOTE: Wing wheel lug nuts (B) are only used on the outer left-hand side wing wheel equipped with motion sensor.

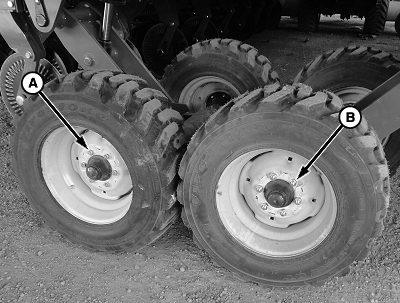

A73600-UN-16NOV11

Wing Wheels

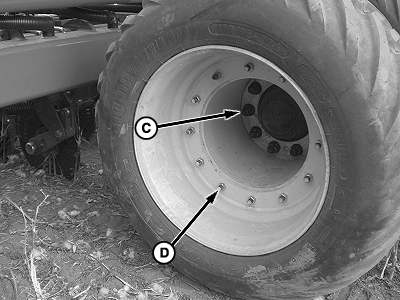

A73601-UN-16NOV11

Center Frame Wheels

A - Wing Wheel Bolts (6 used per wheel)

B - Wing Wheel Lug Nuts (6 used)

C - Center Frame Wheel Lug Nuts (10 used per hub)

D - Center Frame Tire and Rim-to-Extension Cap Screw and Nut (12 used per wheel)

Item	Measurement	Specification
Wing Wheel Bolts and Lug Nuts	Torque	176 N·m (130 lb.-ft.)

Tighten wheel lug nuts (C) to specification.

Item	Measurement	Specification
Wheel Lug Nuts	Torque	675 N·m (500 lb.-ft.)

Tighten tire and rim-to-extension cap screws and nuts (D) to specification.

Item	Measurement	Specification
Tire and Rim-to-Extension Cap Screws and Nuts	Torque	339 N·m (250 lb.-ft.)
