Check Hydraulic Air Compressor Oil


Service Machine Safely

CAUTION: Deactivate SCV operating hydraulic compressor and turn tractor off before servicing.

NOTE: Refer to tractor operator’s manual for SCV operation to deactivate. Check hydraulic air compressor oil daily during planting season, and at the beginning of each season.

TS230
TS230-UN-24MAY89

To help prevent personal injury caused by unexpected movement, be sure to service machine on level surface.

If machine is connected to tractor, engage parking brake and/or place transmission in “PARK”, shut off engine and remove key.

If machine is detached from tractor, block wheels and use safety stands to prevent movement.

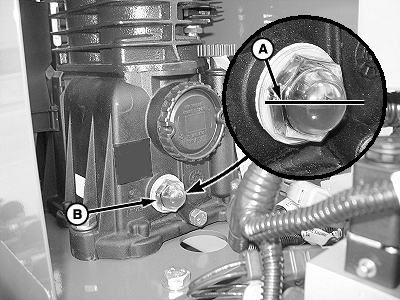

Check Hydraulic Compressor Oil

A72545
A72545-UN-14SEP11

A - Middle

B - Sight Glass

Correct compressor oil level is at the middle (A) of the sight glass (B). Fill oil reservoir as necessary. (See FILL OR CHANGE HYDRAULIC AIR COMPRESSOR OIL section.)

WP29706,00002F1-19-20120326
