Transport Safely

A34331-UN-13OCT88

A53085-UN-23OCT03

Always raise parking stand before transporting.

Tractor brakes must be latched together.

Attach a properly sized safety chain between machine and any towed load.

Shift tractor into a lower gear when transporting down steep slopes or hills.

Always travel at a reasonable and safe speed. Never exceed 32 km/h (20 mph).

Never transport machine when more than half full.

Never exceed 13 600 kg (30 000 lb.) of towed weight behind machine while in field.

Always use flashing warning lights, day, and night when transporting on a public roadway.

Keep reflective material and SMV emblem clean and visible on implement and any towed load.

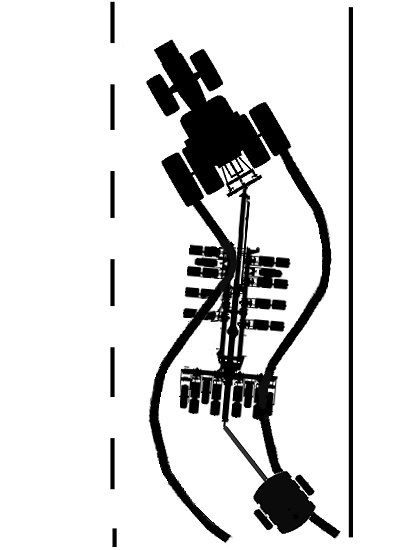

Prevent collisions between motorists and slow moving equipment on public roads. Frequently check for traffic from the rear, especially in turns and use the turn signals.

Everyone must be clear of machine.

For stability and operator safety, tractor must be properly ballasted.

If tractor has ROLL-GARD™ Safety Canopy, keep seatbelt fastened when transporting.

Know transport height and width of machine.

A34333-UN-13OCT88

Keep marker arms away from overhead power lines. Serious injury or death can result. Proceed cautiously under overhead power lines and around utility poles. Know the transport height of machine.

This implement does not meet all local or national requirements for transport on a public roadway. In regions or countries that have national certification requirements for roadway transport, it can be impossible for implement to be approved for such roadway transport. The customer is responsible for understanding and complying with all local, regional, and national requirements regarding roadway transport.
