Tank Level Sensors

A49868-UN-12AUG02

A53315-UN-12NOV03

A - Tank Level Sensor

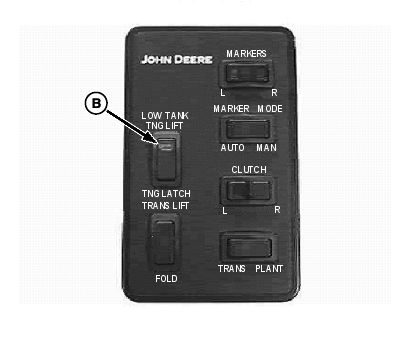

B - Tank Low Warning Light

IMPORTANT: Clean tank level sensors prior to filling CCS tanks. Use “brush” to clean seed level sensor.

NOTE: Tank level sensor is factory installed at the lowest setting. Sensor can be moved higher up on bracket to receive an earlier warning.

Tank level sensors (A) are optical sensors. When the sensor is exposed in either tank, the tank low light (B) on the frame control console will illuminate and a warning will appear on the monitor.
