Lubrication Intervals

Lubrication Intervals
Item	Start of Season	As Required	10 Hours or Daily	20 Hours	50 Hours	200 Hours	Middle of Season	End of Season
All Roller Chains	●	●						●
Drillshafts			●					●
Gauge Wheels			●
Row Cleaner					●
Unit Mounted Coulter						●
Pro-Series Vacuum Seed Meters	●	●
MaxEmerge Vacuum Seed Meters	●	●
Fertilizer Drive Chain	●	●						●
Piston Pump Shafts			●
Piston Pump Crankcase			●
Front Hitch Pivots					●
Rear Hitch Pivots					●
Wing Wheel Pivots			●
Wishbone Pivots					●
Lift Cylinders					●
Fold Cylinders					●
Center Marker Pivots			●
Main Frame Pivots			●
Wing Fold Pivots			●
Rear Center Hitch Roller
Wing Flex Pivots			●
Front Hitch Pivots					●
Hitch Clevis				●
Rear Center Hitch Roller					●
1Center Frame Wheel Hubs	●						●

A38723-UN-27NOV95

A38361-UN-27NOV95

A - Pesticide Drive Chain

B - Seed Meter Drive Chain

C - Pesticide Drive Sprocket

D - Drive Disconnect Knob

A71342-UN-25APR11

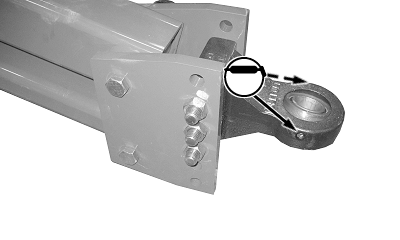

Hitch Clevis

A44250-UN-06NOV97

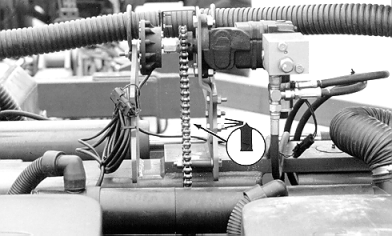

Variable Rate Drive Roller Chain (If Equipped)

A75427-UN-14JUN12

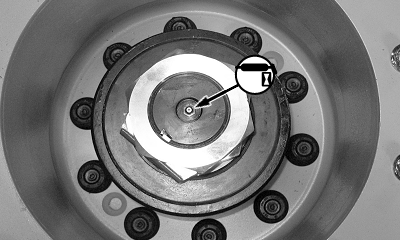

Center Frame Wheel Hub

A40467-UN-22NOV96

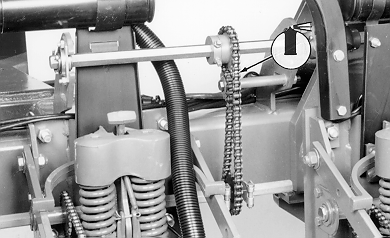

Drive Roller Chains

A67370-UN-18MAY10

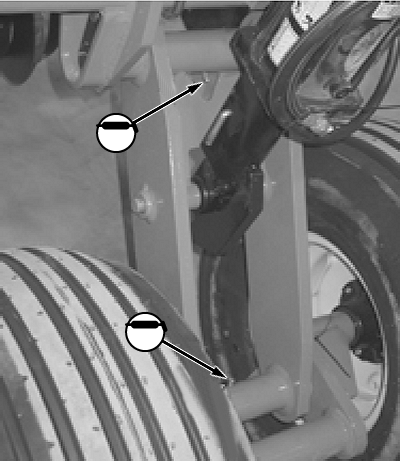

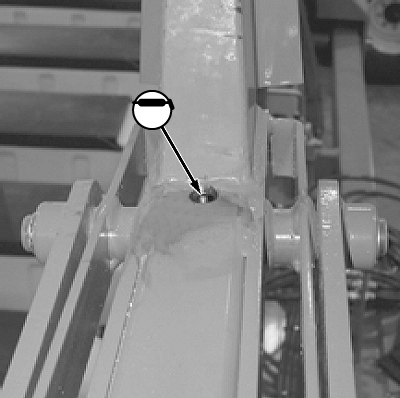

Wing Wheel Pivots

A67369-UN-18MAY10

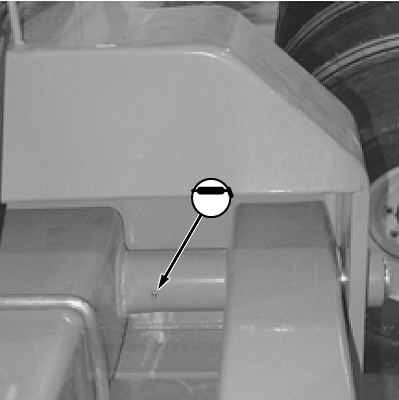

Center Marker Pivots

A67362-UN-18MAY10

Wing Flex Pivots

A67365-UN-18MAY10

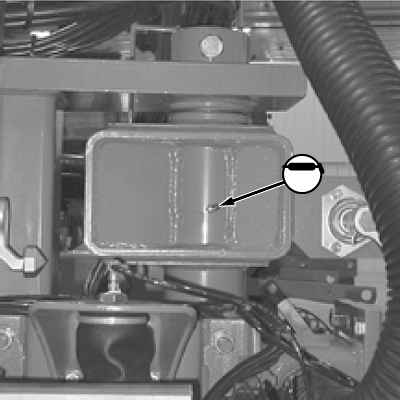

Wing Fold Pivots

A67367-UN-18MAY10

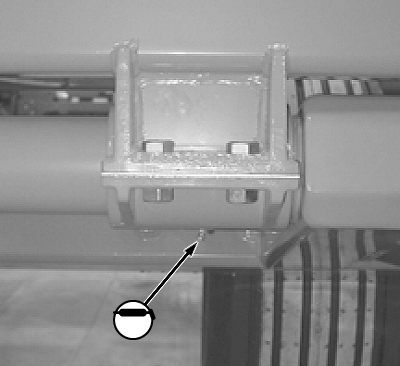

Main Frame Pivots

A72087-UN-02AUG11

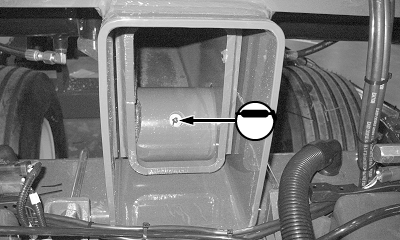

Rear Center Hitch Roller

A72088-UN-02AUG11

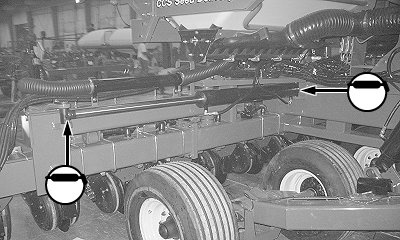

Fold Cylinders

A67364-UN-18MAY10

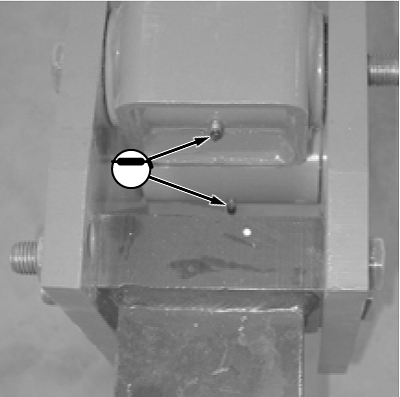

Front Hitch Pivots

A67368-UN-18MAY10

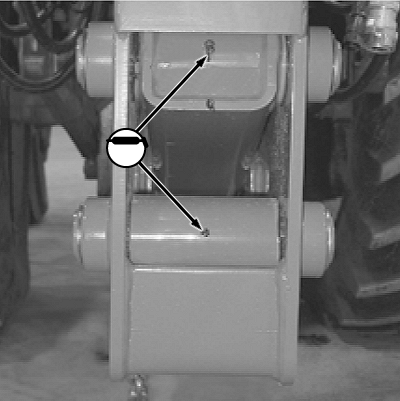

Rear Hitch Pivots

A71343-UN-25APR11

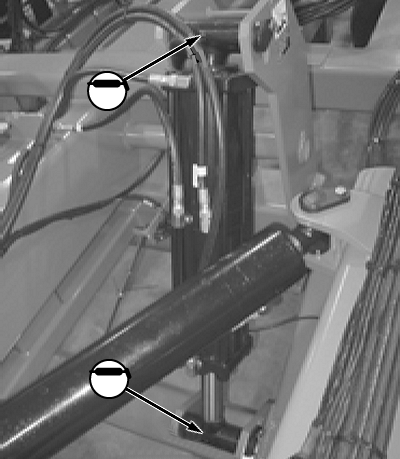

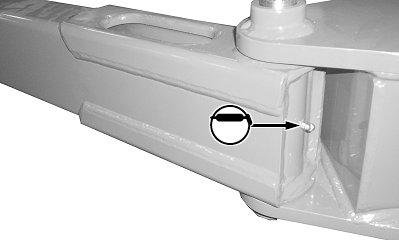

Wishbone Pivots

A67363-UN-18MAY10

Lift Cylinders

A64844-UN-01JUN09

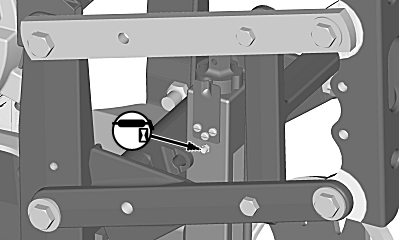

Unit Mounted Row Cleaner Adjustment Arm

A64845-UN-01JUN09

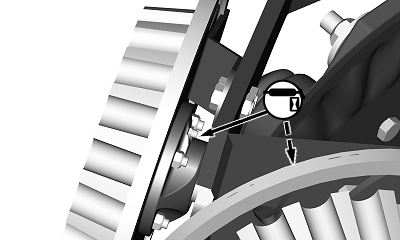

Unit Mounted Row Cleaner Hub (Top View)

A64843-UN-01JUN09

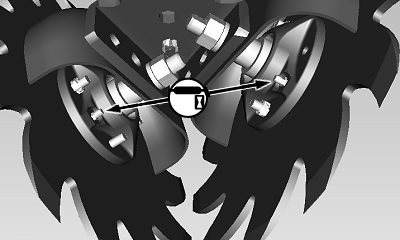

Unit Mounted Row Cleaner Hub (Bottom View)

Row cleaner hubs have sealed bearings factory and regular lubrication is not required. Add grease to hub grease fittings annually or every 200 hours to keep dust away from bearing seal.

Add grease slowly until slight resistance is felt or a small amount of grease comes out between hub and blade. If a non-sealed replacement bearing is installed, grease row cleaner hubs at a 50 hour interval.

A38363-UN-16JUL08

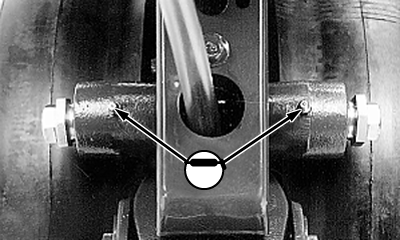

Gauge Wheels

A39996-UN-28AUG96

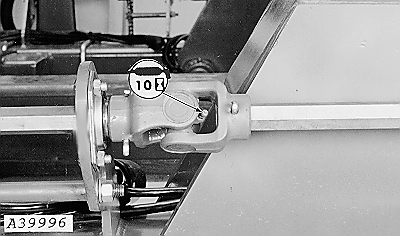

Drillshaft

A44253-UN-07NOV97

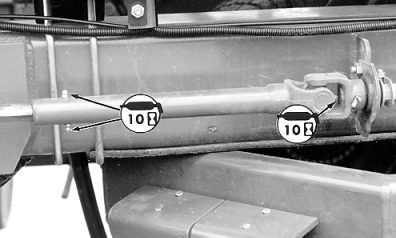

Drillshafts

A29983-UN-16JUL08

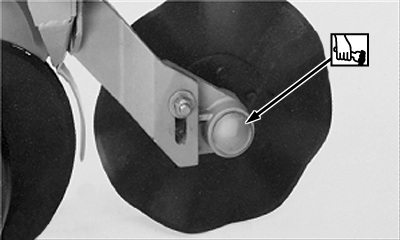

Unit Mounted Coulter

A73989-UN-12JAN12

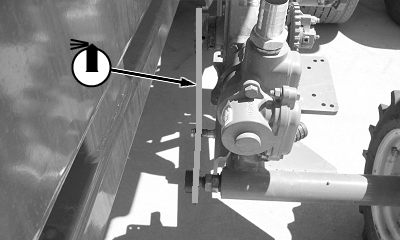

Fertilizer Drive Chain

A35436-UN-16JUL08

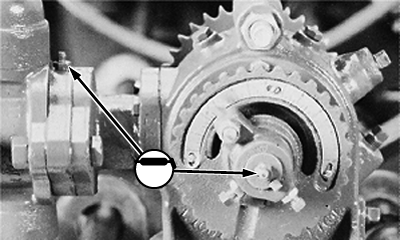

Piston Pump Shafts

A35437-UN-21DEC92

Piston Pump
