Relay and Fuse Location for Compressor Power Harness

A68115
A68115-UN-19JUL10

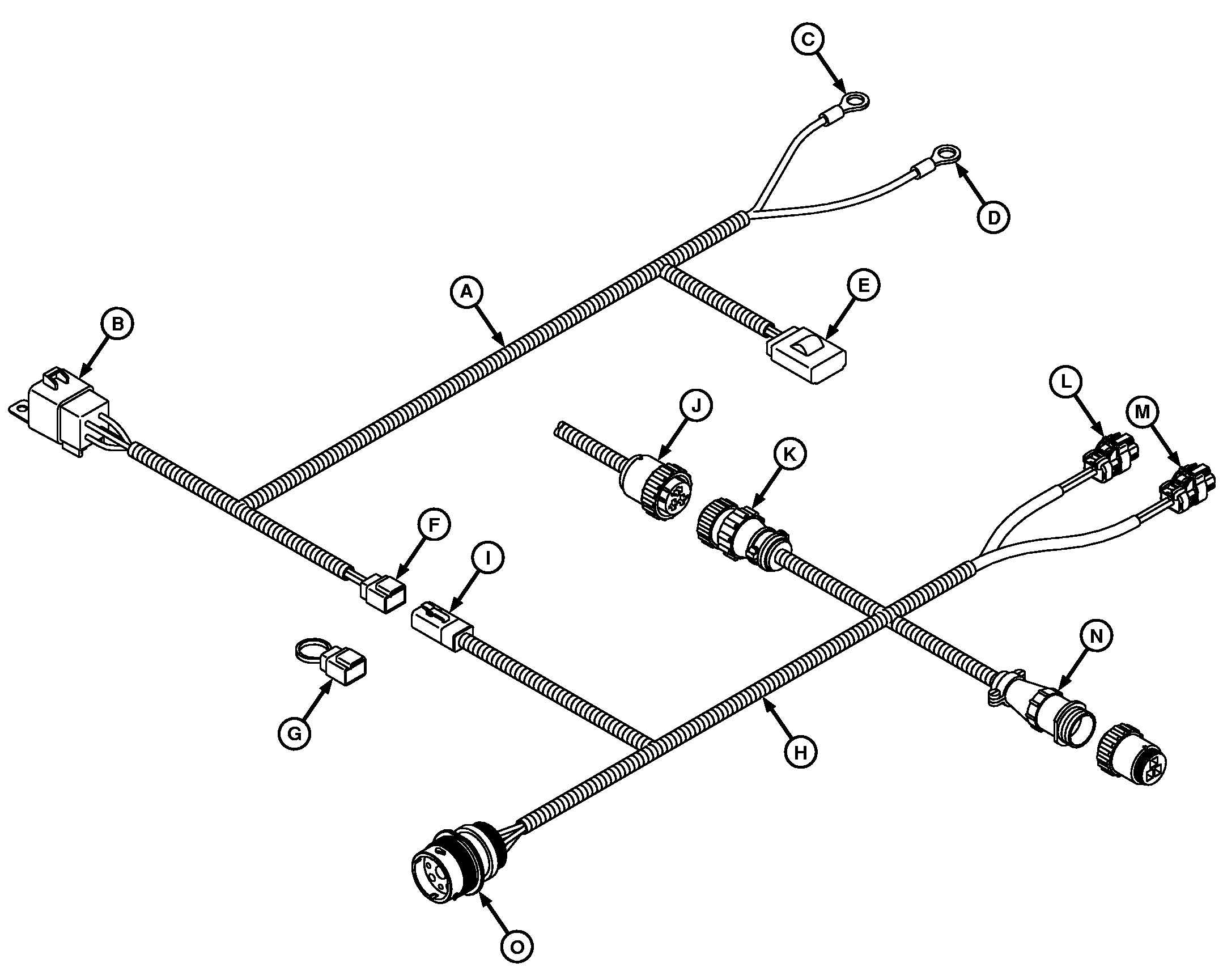

Compressor Power Harness

A - Compressor Battery Harness

B - 40A Relay

C - Battery Terminal (+)

D - Battery Terminal (-)

E - 40A Fuse

F - Convenience (4-pin)

G - Jumper Connector

H - AMS and Compressor Power Harness

I - Convenience (4-pin)

J - CIS Harness (If Equipped)

K - Convenience Plug 2

L - Switch Box

M - Foot Switch

N - Convenience Plug 1

O - Convenience (9-pin)

The AMS and Compressor Power Harness supplies power from the tractor to the pneumatic down force compressor and AMS functions (for example, GreenStar Rate Controller and iGuide).

The following pictures show fuse and relay locations.

A68180
A68180-UN-15JUL10

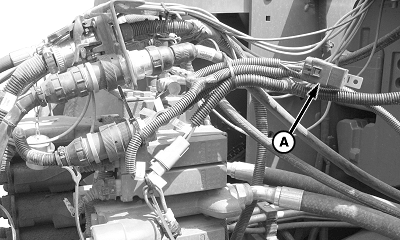

Relay, Four Wheel Drive Tractor

A68181
A68181-UN-15JUL10

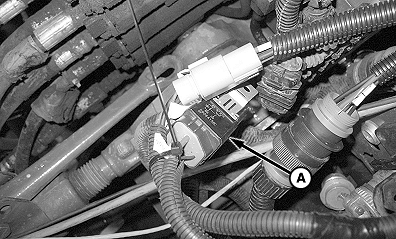

Relay, Row Crop Tractor

A68182
A68182-UN-15JUL10

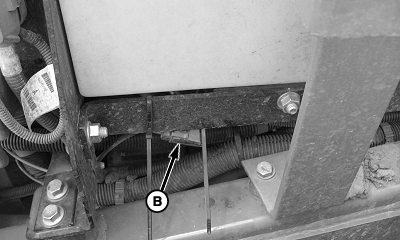

Fuse, Four Wheel Drive Tractor

A68183
A68183-UN-15JUL10

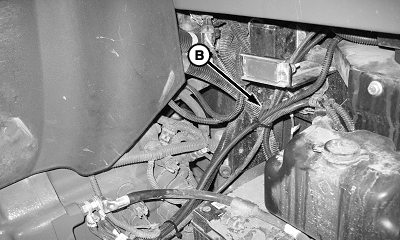

Fuse, Row Crop Tractor

A - Relay

B - Fuse
