Adjust Markers

  1. A50717
    A50717-UN-17OCT02

    A50718
    A50718-UN-21OCT02

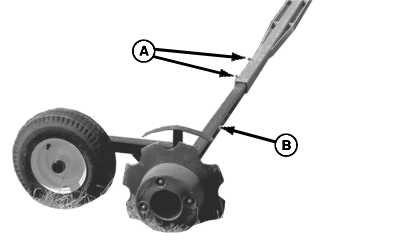

    A - Set Screws

    B - Marker Tube

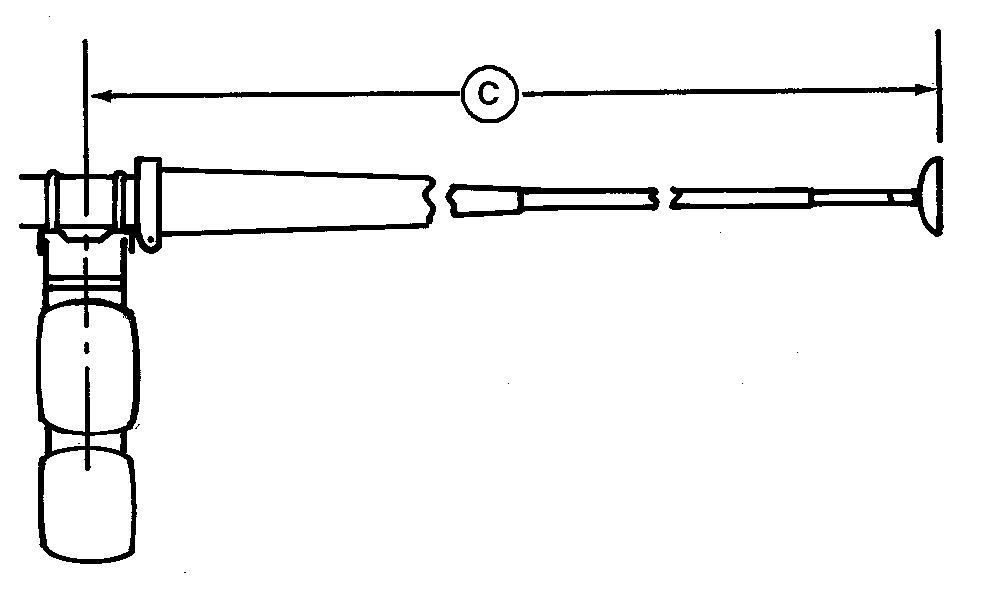

    C - Dimension

    Lower each marker and check length. If adjustment is necessary, proceed with following steps.


  2. Loosen set screws (A).

  3. Adjust marker tube (B) to correct dimension (C).

    Measure from the center line of the planting unit to the marker disk with the marker in the lowered position.

    Planter

    Dimension “C”

    DB44

    6985 mm (275 in.)

    DB60

    9398 mm (370 in.)

    DB60 24R 76 cm (30 in.)1

    9525 mm (375 in.)

    DB60 47R 38 cm (15 in.)2

    9144 mm (360 in.)

    DB66

    10 338 mm (407 in.)

    DB80

    12 573 mm (495 in.)

    DB88

    12 573 mm (495 in.)

    DB90

    14 097 mm (555 in.)

  4. Tighten nuts.

  5. Dimension is approximate and must be verified in the field.

1 DB60 24/47 row machine with rear row units locked up.
2 DB60 24/47 row machine using all rows.
