Setting CCS Tank Pressure All Machines Except DB120

A54380
A54380-UN-28JUL04

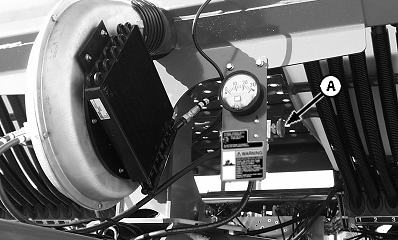

A - Flow Control Valve

To set the tank pressure proceed as follows:

  1. Make sure that tank lids are closed.

  2. IMPORTANT: Warm oil by running vacuum blowers (if equipped) or install a hose loop in SCV per tractor operator's manual. DO NOT use CCS fan to warm oil or seed delivery hoses can plug.

    Warm up tractor oil for 15 minutes.

  3. Lower machine, leave SCV in constant retract detent position.

  4. Open flow control valve (A) counterclockwise until seed starts flowing to hoppers.

  5. IMPORTANT: DO NOT exceed 24 inches of tank pressure or damage to hydraulic motor and seed tank lids can occur.

    NOTE: If lower warnings are received while planting and row meters are empty, increase tank pressure by 2 inches until meters stay full.

    When row hoppers are full and machine is not moving, adjust pressure as follows:

    DB44

    Product

    Pressure in Inches of Water

    Nozzle Insert Required

    Small Seed Discharge Elbow (Vacuum Only)

    Soybeans

    12

    No

    No

    Small Corn Over 4400 seeds/kg (Over 2000 seeds/lb.)

    10

    No

    No

    Medium Corn Between 4400 and 2640 seeds/kg (Between 2000 and 1200 seeds/lb.)

    12

    No

    No

    Large Corn Less than 2640 seeds/kg (Less than 1200 seeds/lb.)

    14

    No

    No

    Cotton

    10

    No

    No

    Sorghum

    8

    Yes

    Yes

    Sunflowers

    6

    No

    No

    DB60 and DB66

    Product

    Pressure in Inches of Water

    Nozzle Insert Required

    Small Seed Discharge Elbow (Vacuum Only)

    Soybeans

    14

    No

    No

    Small Corn Over 4400 seeds/kg (Over 2000 seeds/lb.)

    12

    No

    No

    Medium Corn Between 4400 and 2640 seeds/kg (Between 2000 and 1200 seeds/lb.)

    14

    No

    No

    Large Corn Less than 2640 seeds/kg (Less than 1200 seeds/lb.)

    16

    No

    No

    Cotton

    12

    Yes

    Optional

    Sorghum

    10

    Yes

    Yes

    Sunflowers

    6

    No

    No

    DB80, DB88, and DB90

    Product

    Pressure in Inches of Water

    Nozzle Insert Required

    Small Seed Discharge Elbow (Vacuum Only)

    Soybeans

    16

    No

    No

    Small Corn Over 4400 seeds/kg (Over 2000 seeds/lb.)

    14

    No

    No

    Medium Corn Between 4400 and 2640 seeds/kg (Between 2000 and 1200 seeds/lb.)

    16

    No

    No

    Large Corn Less than 2640 seeds/kg (Less than 1200 seeds/lb.)

    18

    No

    No

    Cotton

    12

    Yes

    Optional

    Sorghum

    10

    Yes

    Yes

    Sunflowers

    8

    No

    No
