Setting Pump Drive Range

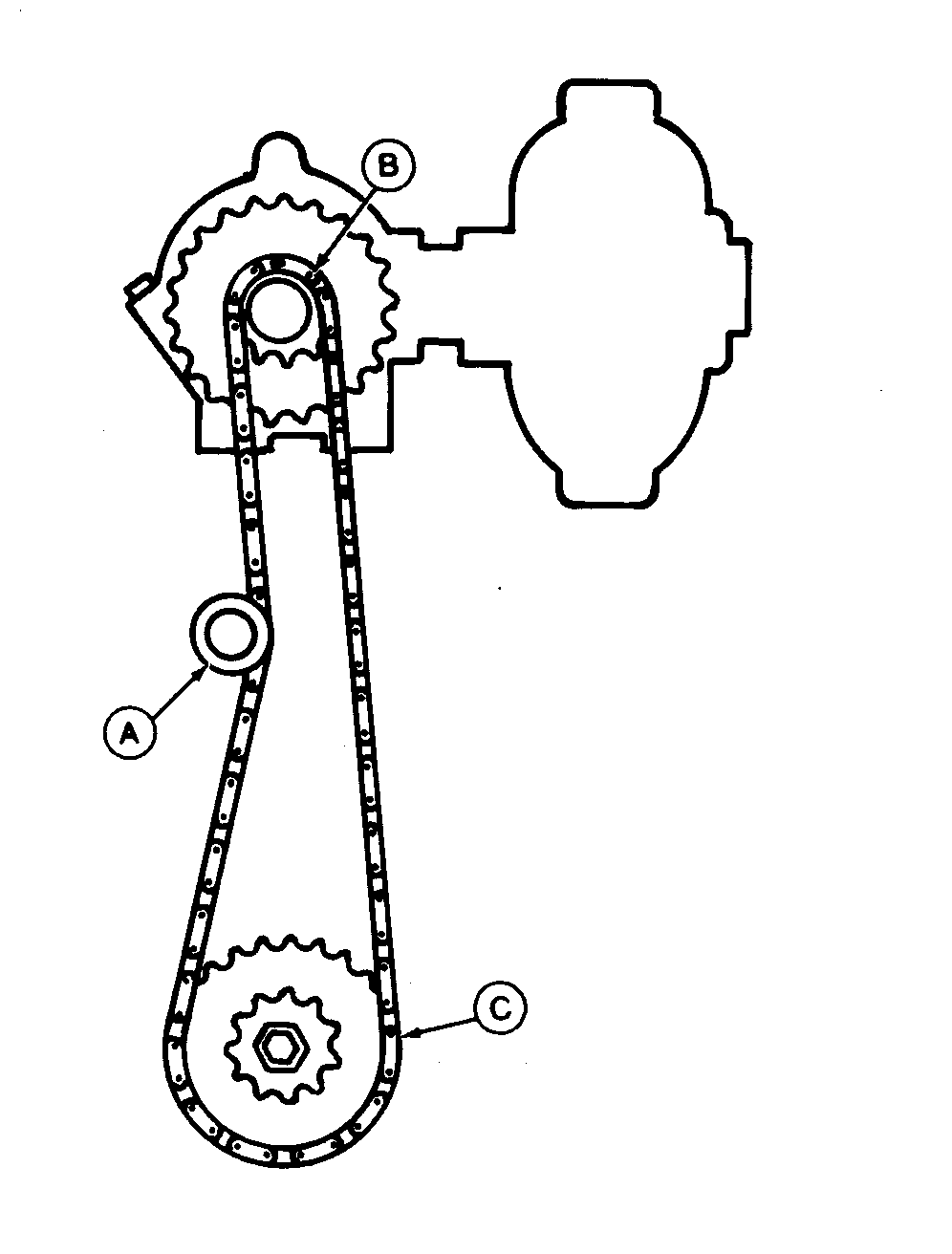

  1. A35430
    A35430-UN-21DEC92

    A - Roller Idler

    B - Sprocket, 16-Tooth

    C - Sprocket, 35-Tooth

    For HIGH DRIVE range, loosen roller idler (A). Move chain to driven 16-tooth sprocket (B) on pump and to drive 35-tooth sprocket (C).


  2. Tighten idler.

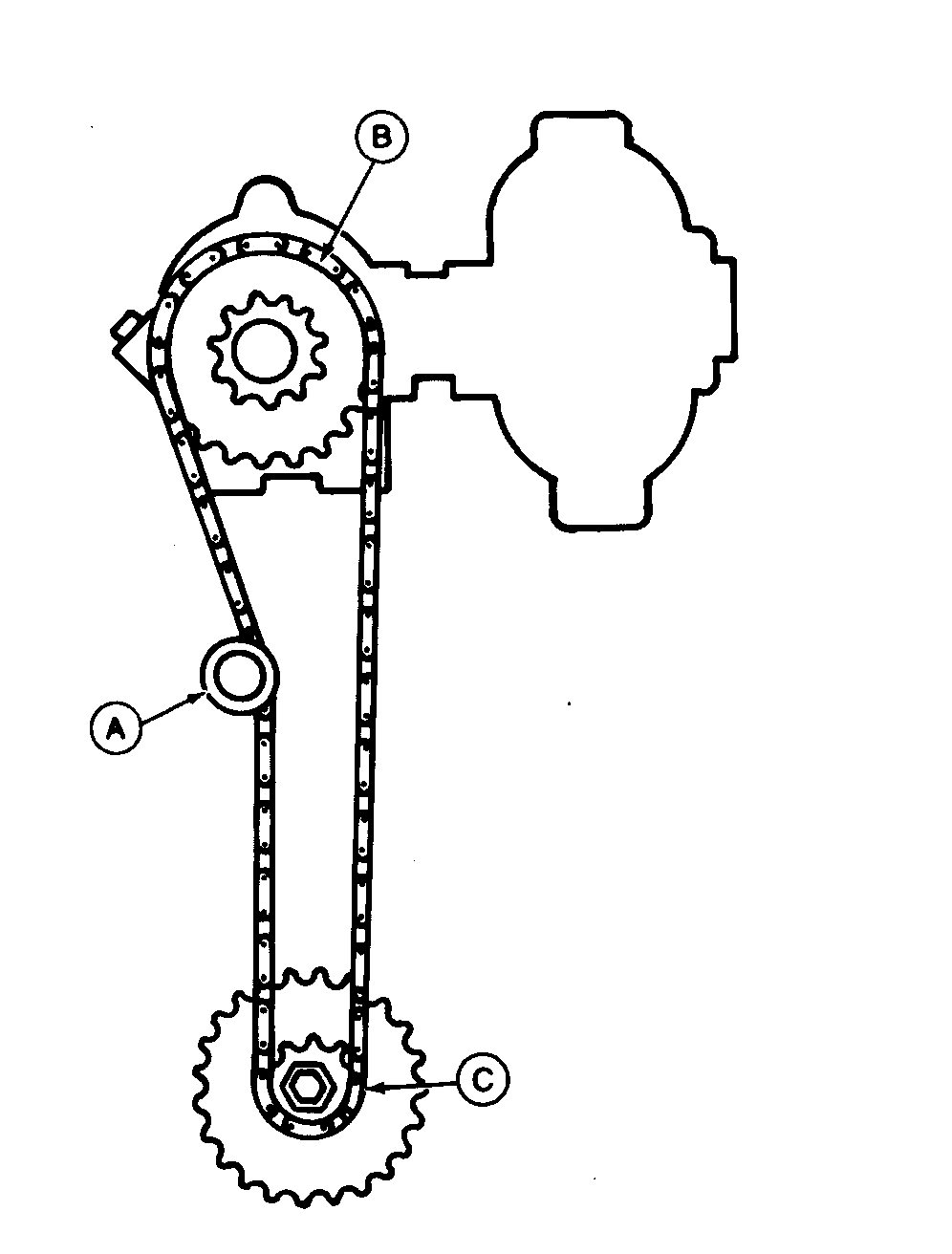

  3. A35431
    A35431-UN-21DEC92

    A - Roller Idler

    B - Sprocket, 35-Tooth

    C - Sprocket, 16-Tooth

    For LOW DRIVE range, loosen roller idler (A). Move chain to driven 35-tooth sprocket (B) on pump and to drive 16-tooth sprocket (C).


  4. Tighten idler.

720016ROM,AT,I4-19-19930520
