CCS Fan and VacuMeter™ Motor (Case) Drain Requirements
IMPORTANT: CCS fan and VacuMeter™ case drain hose (A) MUST be attached to low-pressure drain connection PRIOR to any hoses being connected. Case drain MUST have LESS THAN 172 kPa (1.72 bar) (25 psi) or fan motor will be damaged.
A53393-UN-25NOV03

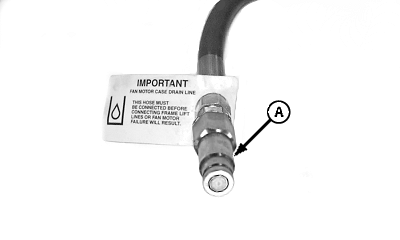

Flush Face Fitting
A - Motor Seal (Case) Drain Hose
The hydraulic motors used on the CCS fan and VacuMeter™ are a low flow, high pressure motors and are designed to operate on a closed-center hydraulic system. Connecting the CCS fan or the VacuMeter™ to an open-center system is not recommended. See your John Deere dealer for more information.|
