Attach Machine to Tractor

CAUTION: Do not stand between tractor and machine unless the tractor transmission is in PARK.

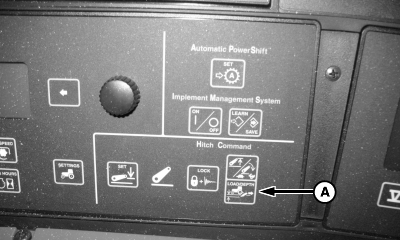

A64944
A64944-UN-06JUL09

8030 Series

A - Load-Depth Control

Place the hitch load-depth control (A) in “position” setting for better control when hitching and during operation.

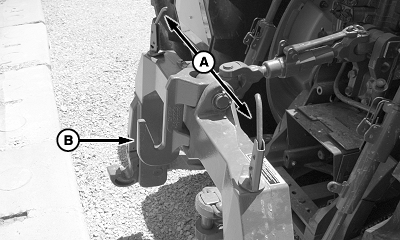

A63742
A63742-UN-06NOV08

8030 Series Tractor Latch Levers Shown

A - Latch Control Levers

B - Category 3 Center Link Top Hook

Raise both latch control levers (A). Category 3 center link top hook (B) must be installed on quick coupler.

1720 CCS only: Use one of the 2 hitching methods below.

  1. Verify tractor hitch 3rd link is pinned in the lower hole. Adjust the 3rd link to minimum length. Attach quick coupler to planter using lower 2 hooks only.
  2. For uneven terrain, attach quick coupler to planter pinning all 3 hooks. Remove tractor hitch 3rd link to allow maximum articulation between the planter and tractor.

    IMPORTANT: Use caution when crossing ditches or valleys to be sure planter does not contact the rear of the tractor.

CAUTION:

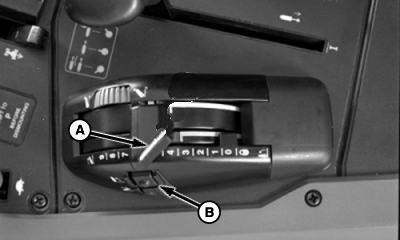

A47218
A47218-UN-05APR01

7000 Shown

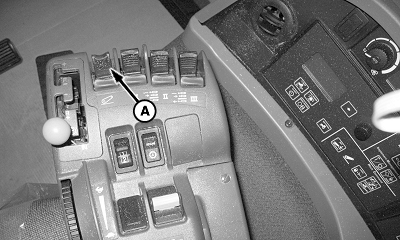

A64945
A64945-UN-06JUL09

8030 Series

A - Hitch Control Lever

B - Hitch Control Switch

To prevent possible injury, do not use hitch control switch (B) while attaching machine. Hitch control switch is only used for raising and lowering in the field only.

Lower rockshaft using hitch control lever (A) until the quik-coupler hooks are lower than the machine hitch pins. Slowly back the tractor up to the machine.

Check drawbar clearance. If drawbar contacts coupler or machine, turn drawbar offset down and in shortest possible position.

CAUTION: When latches are properly locked, handles must be horizontal and against coupler frame.

Raise the rockshaft using hitch control lever (A) enough to engage the machine hitch pins in the quik-coupler hooks. Push both latch control levers down to lock the machine to the quik-coupler.

CCS planters only: Either pin top hook of quick hitch to planter mast and remove tractor 3rd link or use only the 2 lower points and shorten tractor 3rd link to shortest length.

NOTE: Check tractor dual wheel tire clearance.

A38226
A38226-UN-10APR96

A - Drilled Pin

After machine is attached to tractor, remove spring locking pin and drilled pin (A). Install stand in raised position with drilled pin and spring locking pin.

IMPORTANT: To prevent damage to planting units, remove parking straps after connecting machine to tractor.

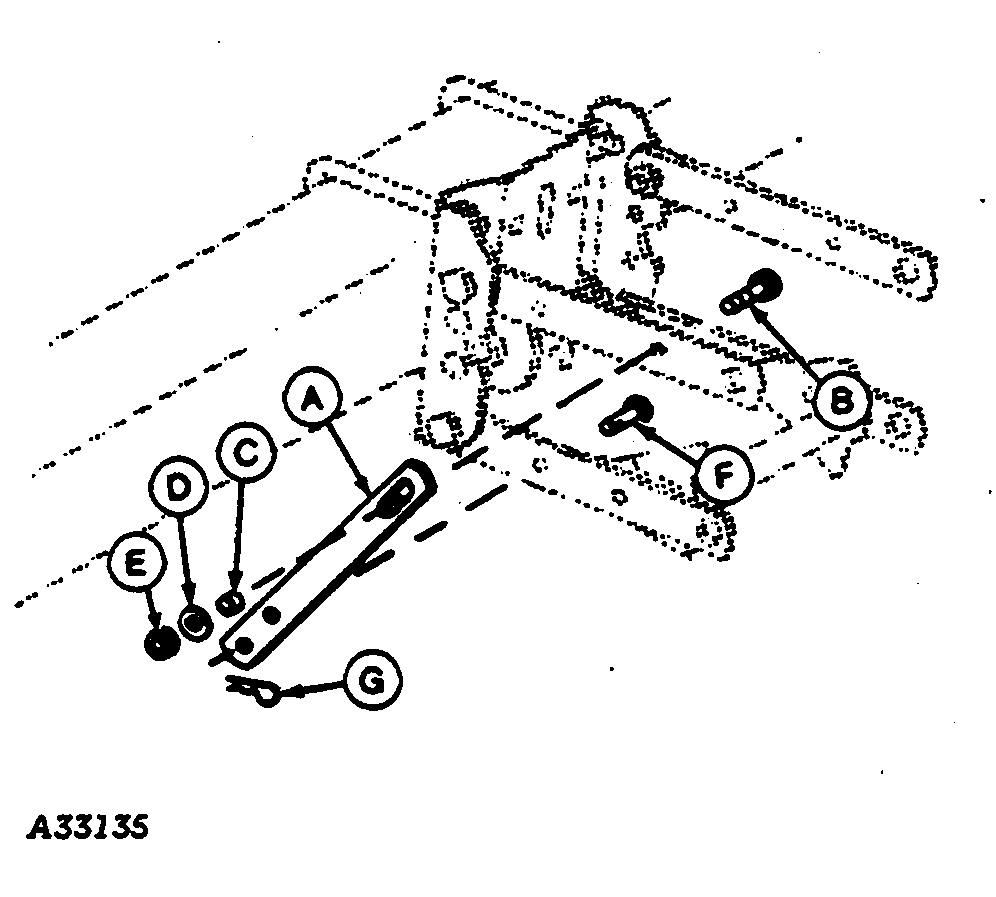

A33135
A33135-UN-12OCT88

A - Strap

B - Cap Screw

C - Bushing

D - Flat Washer

E - Nut

F - Drilled Pin

G - Locking Pin

After connecting machine to tractor, remove parking straps (if equipped) from outside planting units. Straps are used when lift assist wheels are NOT installed.

Remove drilled pin (F) and spring locking pin (G) to remove strap from lower parallel arm.

Remove M12 x 45 cap screw (B), bushing (C), flat washer (D) and nut (E) to remove strap (A) from upper parallel.

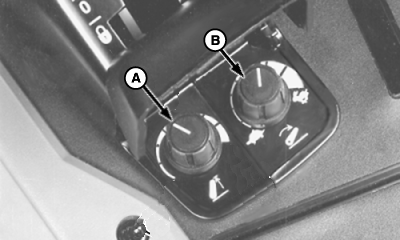

A47220
A47220-UN-05APR01

7000 Shown

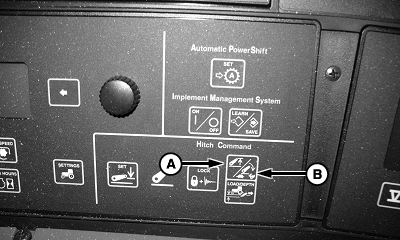

A64946
A64946-UN-06JUL09

8030 Series

A - Height Control Knob

B - Rate Control Knob

Adjust tractor hitch height limit. See tractor operator's manual.

Adjust tractor hitch rate of drop. See tractor operator's manual.

DT31797,00002F2-19-20090706
