Detaching from Tractor

1. CAUTION: Do not detach 1720 with wings folded. It must be detached in unfolded position to maintain stability.

   IMPORTANT: Top of parking stand (B) must be over the top of support tube (C) for stability.


   A47269-UN-02APR01


   A47270-UN-02APR01

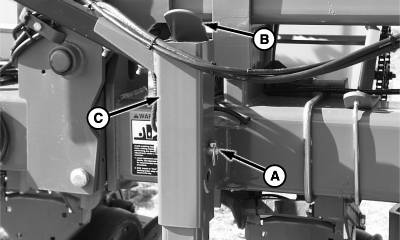

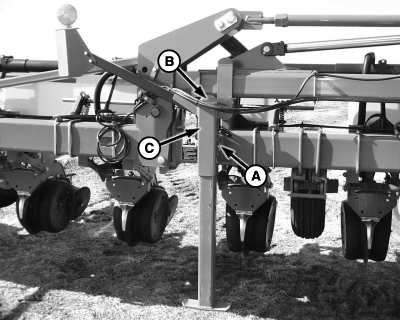

   A - Drilled Pin

   B - Stand

   C - Support Tube

   Unfold machine.

---




2. Pin wings in rigid position. See FLEX AND RIGID FRAME CONFIGURATIONS in Operating Machine section.

3. Lower parking stand and fasten with drilled pin (A) and spring-locking pin.

4. Lower machine to ground. See tractor operator's manual.

5. Place SCV levers in “Float” position.

6. Turn tractor key switch off.

7. CAUTION: Avoid injury from escaping hydraulic oil under pressure, relieve pressure in the system before removing hoses from breakaway couplers.

   Disconnect all hydraulic hoses.

8. Disconnect warning light harness from seven-pin connector.

9. Disconnect monitor wiring harness.

10. Attach dust covers to harness connectors.

11. Attach tractor 3rd link to quick hitch if previously removed.

12. Disconnect machine from tractor.
