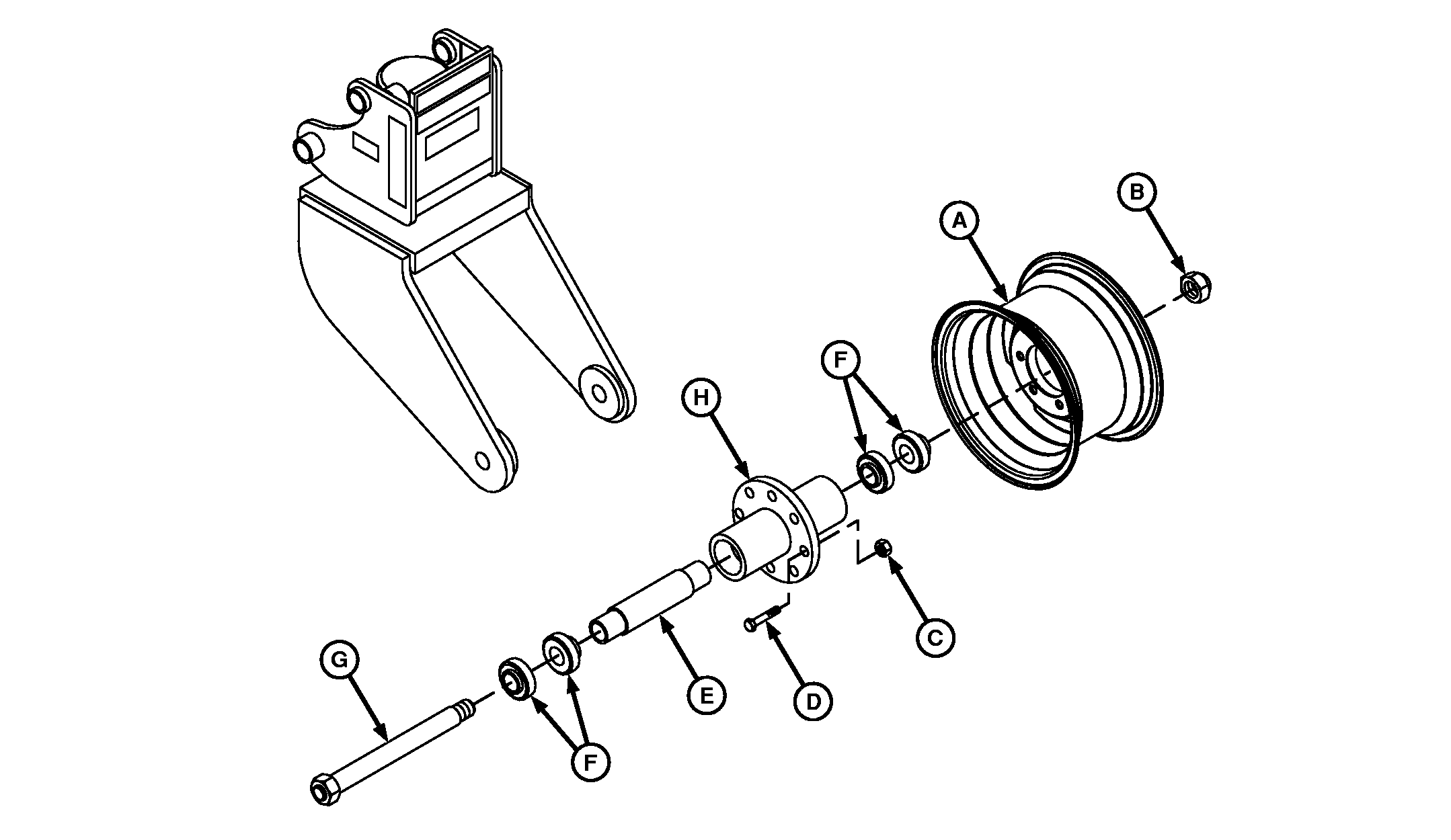

Service Wheel Bearings— 1720 CCS

A63328-UN-30SEP08

A - Rim

B - Nut

C - Lug Nut

D - Stud Bolt

E - Spacer

F - Bearing (4 used)

G - Axle

H - Wheel Hub

Once a year, clean and repack bearings (F) with wheel bearing grease and assemble on axle (G). Be careful not to damage seals in wheel hub (H).

Item	Measurement	Specification
Wheel Nuts-to-Wheel Bolts— 1720CCS	Torque	230 N·m (170 lb.-ft.)
Axle Nut-to-Axle Bolt— 1720CCS	Torque	1627 N·m (1200 lb.-ft.)
