Tighten Disk Closing Attachment

1.

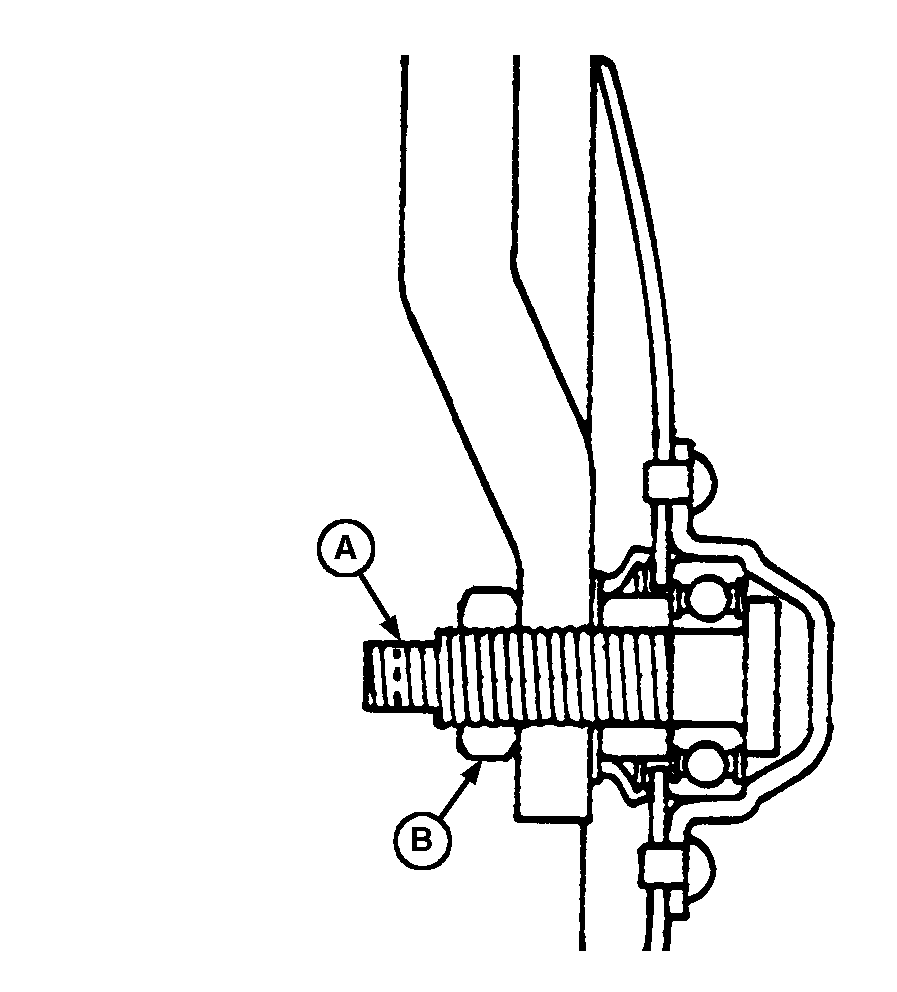

   A47137-UN-01MAR01

   A - Disk Bearing Bolt

   B - Jam Nut

   Loosen jam nut (B).

---




2. Place wrench on flat surfaces of disk bearing bolt (A) and tighten bolt to specification.

   Item	Measurement	Specification
   Bearing Bolt	Torque	203 N˙m (150 lb-ft)

3. Place wrench on flat surfaces of disk bearing bolt to maintain proper torque adjustment of the bolt and tighten jam nut to specification.

   Item	Measurement	Specification
   Jam Nut	Torque	203 N˙m (150 lb-ft)
