Leveling Machines Equipped With Pivoting Center Mast

1. IMPORTANT: Damage to machine can occur during transport when machine is improperly leveled.

   NOTE: Lift assist wheels must always face rearward when leveling machine.

   NOTE: Machine frame height must be set before leveling machine. See ADJUSTING FRAME HEIGHT in Service and Adjustments section.


   A38228-UN-10APR96

   1710 Shown

   A - Lift-Assist Wheels

   Drive tractor and machine on level ground.

---




2. Lower machine to planting position while driving forward.

3. Raise lift assist wheels (A) off the ground if possible.

4.
   A34524-UN-10OCT88

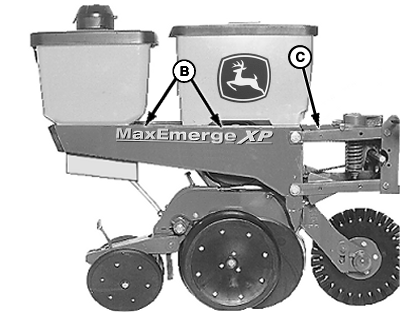

   A64721-UN-22MAY09

   A - Center Link

   B - Planting Unit

   C - Parallel Arms

   Level frame front-to-rear with tractor center link (A).

---




5. Check to be sure planting unit planting units (B) are parallel with ground. Adjust center link and drive-gauge wheels as needed.

6. When planting, parallel arms (C) must be parallel to the ground.

   Periodically check machine to be certain planting units are running level.

7. Raise machine completely.

8.
   A34521-UN-10OCT88


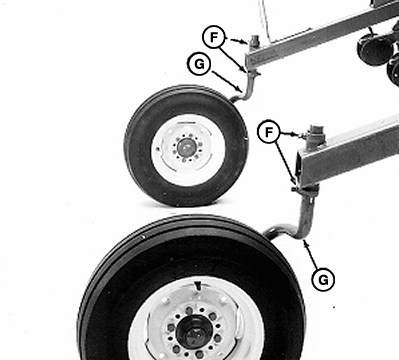

   A64722-UN-22MAY09

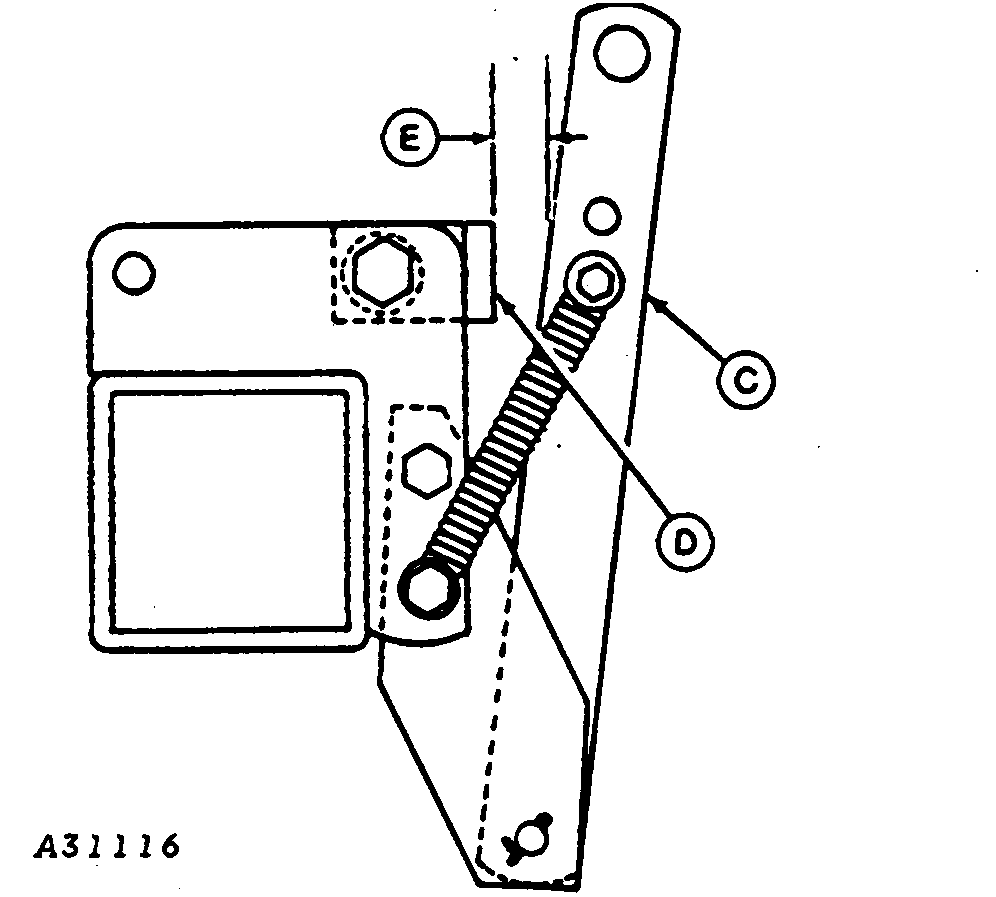

   A31116-UN-12OCT88

   A - Lift Links

   B - Center Link

   C - Mast link

   D - Stop

   E - Dimension

   F - Axle Collars

   G - Axles

   Check to see if dimension (E) between mast link (C) and stop (D) is at least 75 mm (3 in.).

   If dimension (E) is not at least 75 mm (3 in.), proceed as follows:

   • Shorten tractor lift links (A and B) to shortest length. See your tractor operator's manual.
   • Lower machine completely.
   • Loosen axle collars (F) and raise axles (G) upward.
   • Tighten axle collars.
   • Raise machine completely, check dimension on pivoting center mast and adjust as necessary.



---
