Operating CCS Tank Fill Lights
IMPORTANT: Tractor field lights must be on for fill lights to operate.
IMPORTANT: Never transport with field or fill lights on.
A63279-UN-17SEP08
A63280-UN-17SEP08

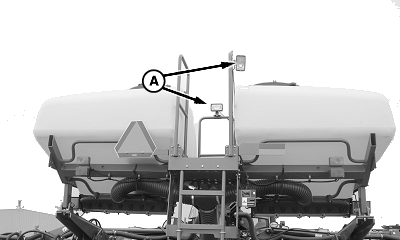

A - Fill Lights

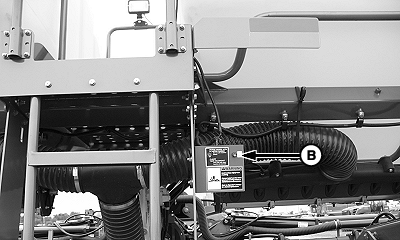

B - Fill Light Switch
With tractor field lights on, toggle fill light switch (B) to operate fill lights (A).|
OUO6045,000004B-19-20080917 |
