Planting Seed Plots with CCS Systems

NOTE: Due to the small quantity of seed being planted, removing the CCS system from operation and filling row units individually is recommended.

A63282
A63282-UN-17SEP08

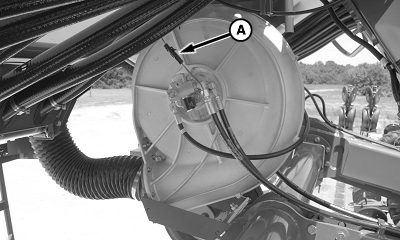

A - CCS Fan Harness Connector

Disconnect harness connector (A) from CCS fan.

Fill row units individually instead of using CCS tanks.

OUO6045,000004D-19-20080917
