Tank Level Sensors

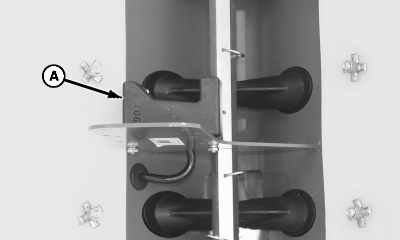

A49868-UN-12AUG02

A - Tank Level Sensor

CCS tank level sensors are provided on all CCS planters. On drawn planters equipped with a frame control box, a Low Hopper warning light illuminates when the sensor is exposed.

If machine is not equipped with a frame control box, the tank level sensors are not used. Use the Seed Estimator functions in the SeedStar™ monitor to estimate when the CCS tanks are about to run empty.

IMPORTANT: Clean tank level sensors before filling CCS tanks. Use a “brush” to clean seed level sensor.

NOTE: Tank level sensor is factory installed at the lowest setting. Sensor can be moved higher up on bracket to receive an earlier warning.

When the sensor is exposed in either tank, a Low Hopper warning is illuminated on frame control box. If machine is not equipped with a frame control box, use the Seed Estimator functions on the monitor to estimate when tanks are about to run empty.
