Setup Using Rigid Center Mast

IMPORTANT: Lift-assist wheel attachments cannot be used with rigid center mast. Operating with lift-assist wheels may result in lift-assist wheel and/or frame failure.

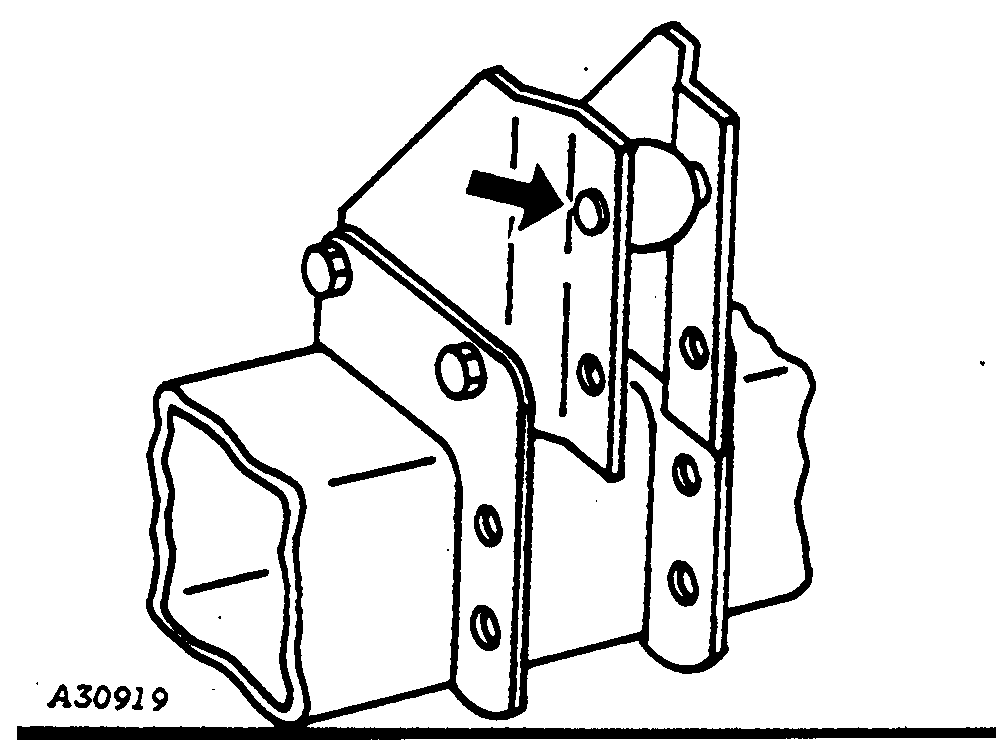

A30919
A30919-UN-12OCT88

Center mast is configured for rigid attachment to tractor.

1720 16 Row machines with lift assist wheels do not use this option.


1720 12 Row Wide

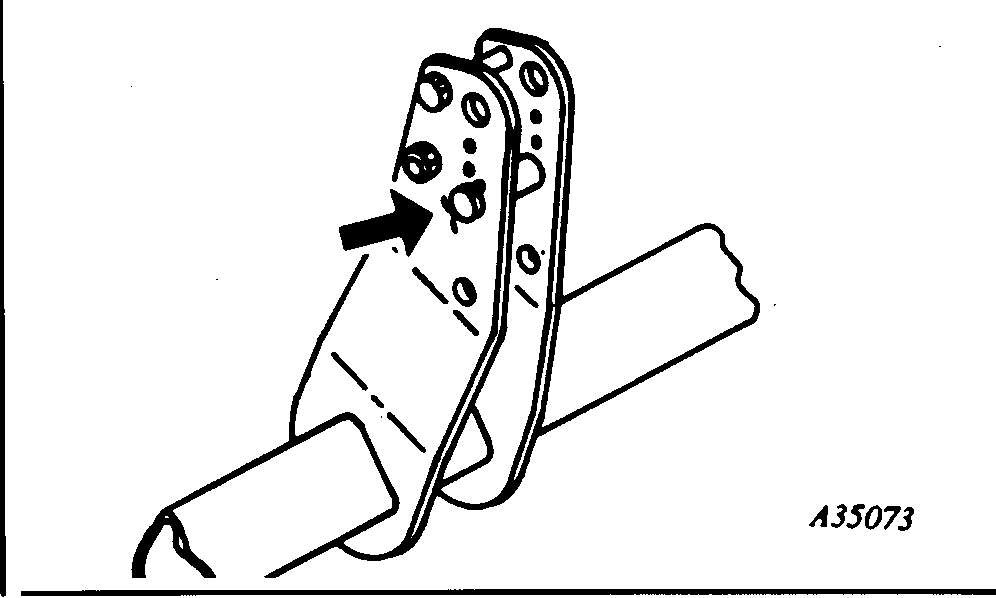

A35073
A35073-UN-09NOV92

Pin positioned for Category 3 and 3N WITH Quick-Coupler.


1720 8 Row Wide and 12 Row Narrow

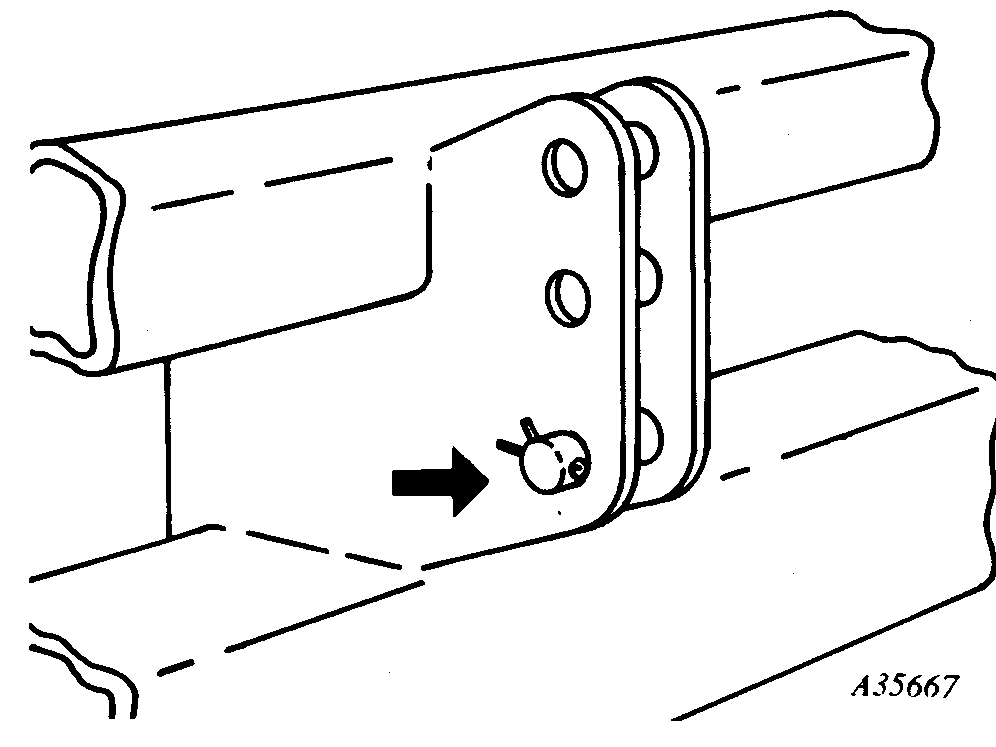

A35667
A35667-UN-05NOV93

Pin positioned for Category 2 WITH Quick-Coupler.

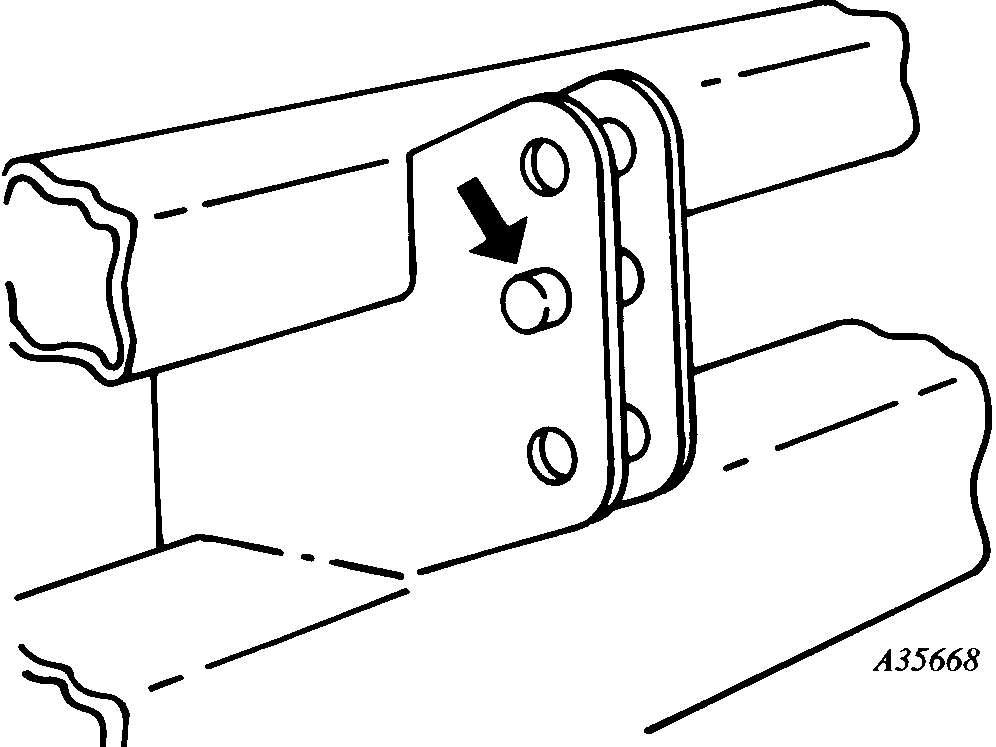

A35668
A35668-UN-05NOV93

Pin and spacer positioned for Category 3 and 3N WITH Quick-Coupler or Category 3N/2 Hitch WITHOUT Quick-Coupler.

OUO6045,0000069-19-20090522
