Folding Machine

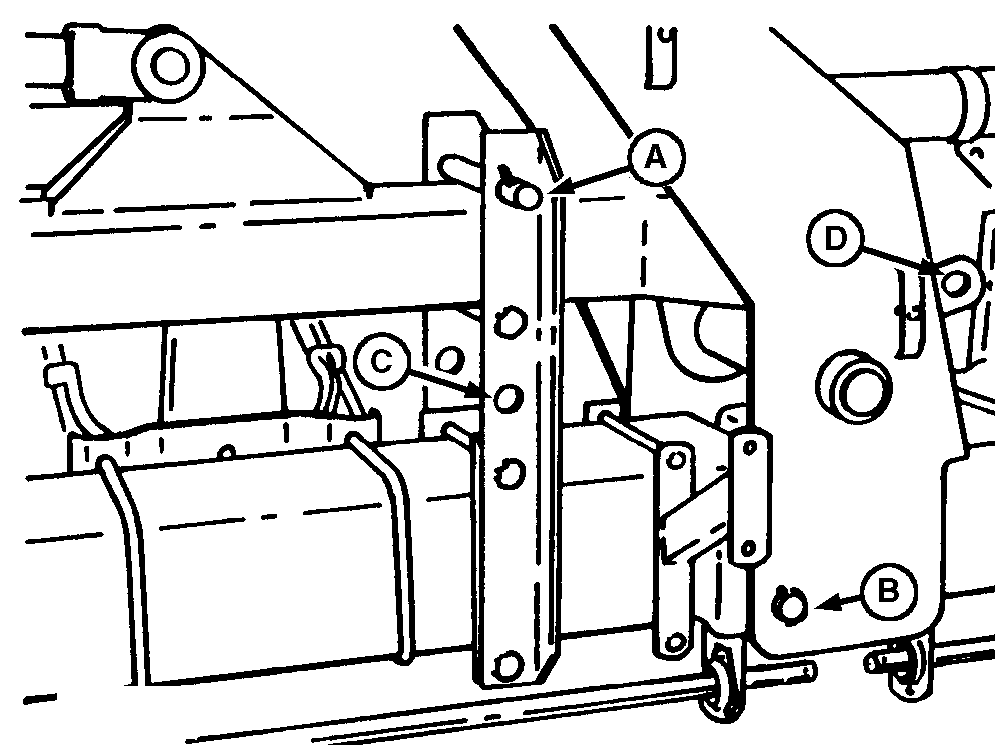

A47248-UN-05APR01

12-Row Wide

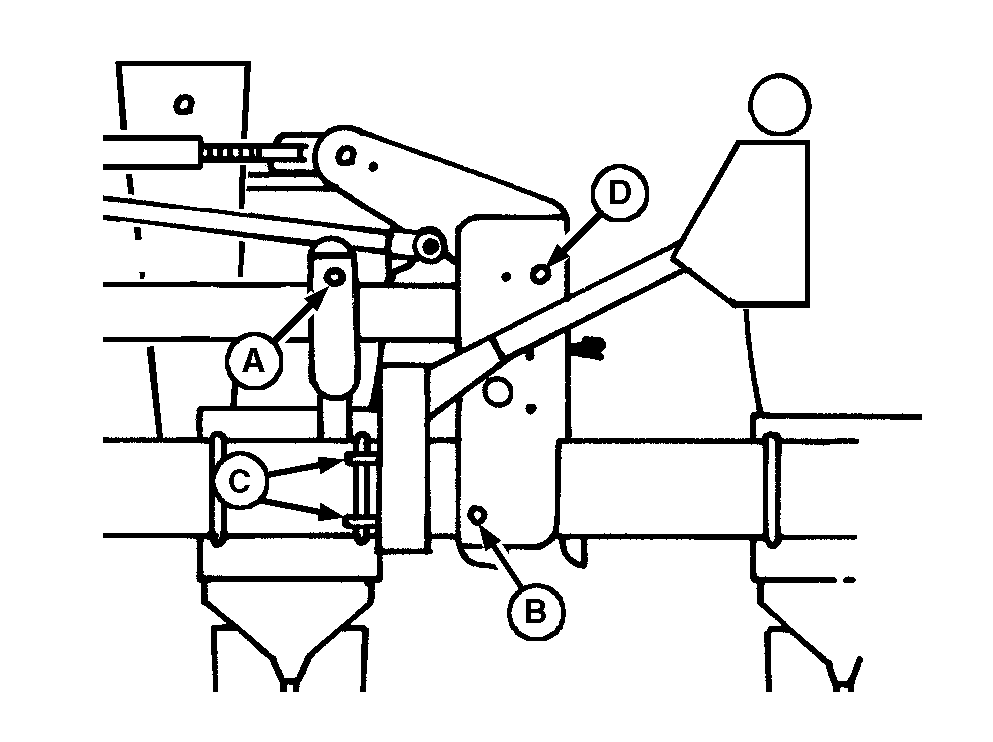

A47246-UN-05APR01

8-Row Wide and 12-Row Narrow

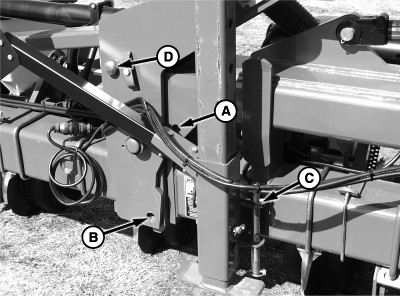

A47247-UN-31MAR01

16-Row Narrow

A - Wing Lock-Down

B - Rigid Lock

C - Storage

D - Storage

1. CAUTION: Always lock markers before folding wings for transport (see MARKER TRANSPORT LOCKS in this section).

   CAUTION: Stay clear of folding sections during raising or lowering.

   Remove pin from wing lock-down (A) position and place it in storage (C) position. Remove pin from rigid lock (B) position and place it in storage (D) position.

2. Raise machine until planting units are clear of ground.

3. Fold machine completely using SCV lever.
