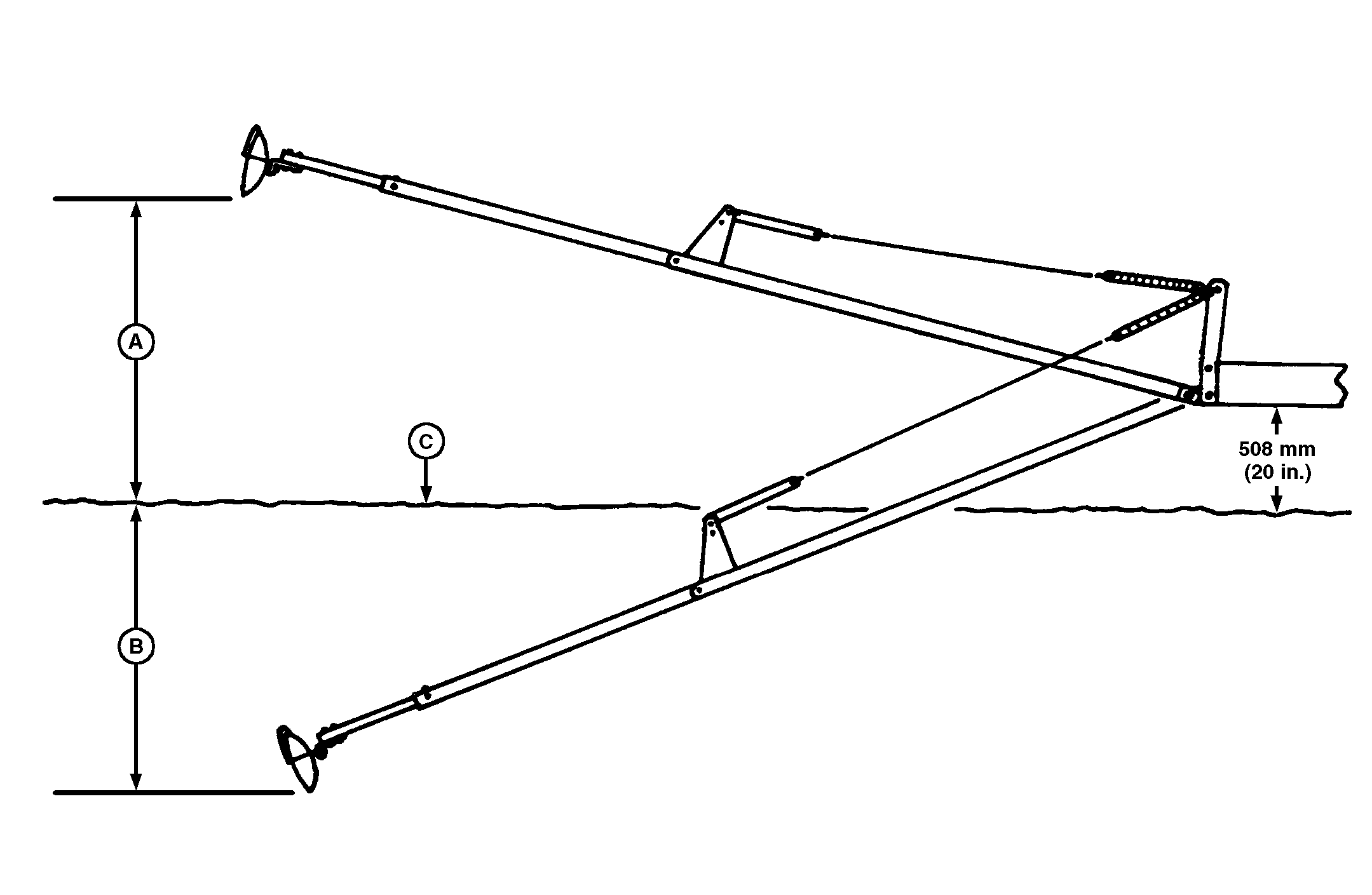

Marker Float Range
A47059-UN-02MAR01
A - Dimension
B - Dimension
C - Ground Line
Marker has an approximate float range (see chart below) which should not be exceeded when planting near drainage ditches or hillsides.Exceeding this float range can result in damage to the marker inner arm.
If this range must be exceeded, raise the marker by operating the marker remote cylinder operating lever.
|
1720 Machine |
|||
|---|---|---|---|
|
Machine Size |
Row Spacing |
Dimension “A” |
Dimension “B” |
|
8-Row Wide |
91 cm (36 in.) |
889 mm (35 in.) |
737 mm (29 in.) |
|
8-Row Wide |
97 cm (38 in.) |
965 mm (38 in.) |
864 mm (34 in.) |
|
8-Row Wide |
102 cm (40 in.) |
1016 mm (40 in.) |
978 mm (38.5 in.) |
|
OUO6045,0000072-19-20081204 |
