Adjusting Marker Length

1.
   A45009-UN-18NOV98

   1720


   A31567-UN-12OCT88

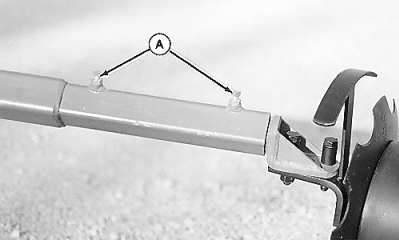

   A - Set Screws

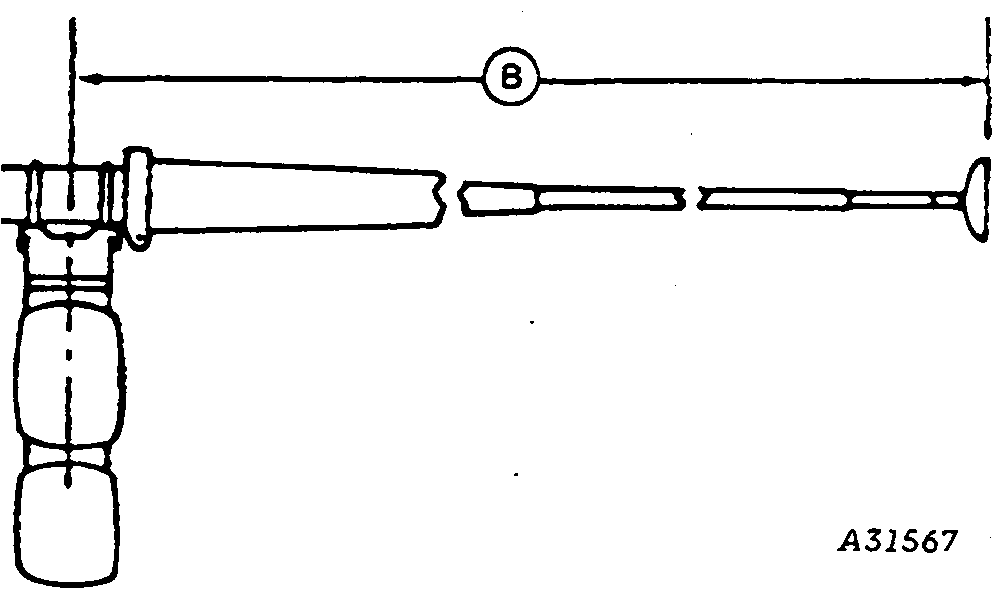

   B - Dimension

   Lower marker.

---




2. NOTE: Dimension (B) is measured from the center line of the outside planting unit to the marker disk. Dimension is approximate and must be checked in the field.

   Loosen jam nuts and set screws (A) on marker and adjust length to dimension (B).

   Machine	Row Spacing	Dimension “B”
   8-Row Wide	914 mm (36 in.)	4114 mm (162 in.)
   	965 mm (38 in.)	4343 mm (171 in.)
   	1016 mm (40 in.)	4572 mm (180 in.)
   12-Row Narrow	70 cm (27.5 in.)	4540 mm (179 in.)
   	762 mm (30 in.)	4953 mm (195 in.)
   12-Row Wide	914 mm (36 in.)	5944 mm (234 in.)
   	965 mm (38 in.)	6274 mm (247 in.)
   	1016 mm (40 in.)	6604 mm (260 in.)
   16-Row	762 mm (30 in.)	6477 mm (255 in.)

3. Tighten set screws and jam nuts.
