Flex and Rigid Frame Configurations (16-Row Narrow)

A47271
A47271-UN-02APR01

A47274
A47274-UN-02APR01

A - Storage Position

B - Storage Position

C - Wing Locked Position

D - Storage Position



To Flex Up and Down

NOTE: Follow procedure on both sides of machine.

Place flex pin in storage position (A).

IMPORTANT: Shaft couplers or transmission cotter pin will fail if arm moves up.

Remove wing lock pin from storage position (B) and place in wing locked position (C).

Place rigid lock pin in storage position (D).

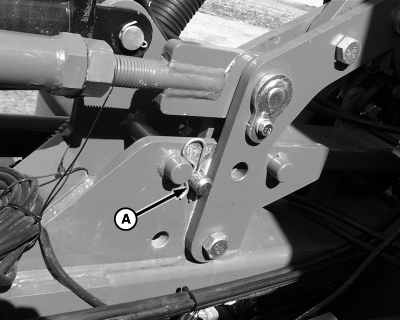

A47272
A47272-UN-02APR01

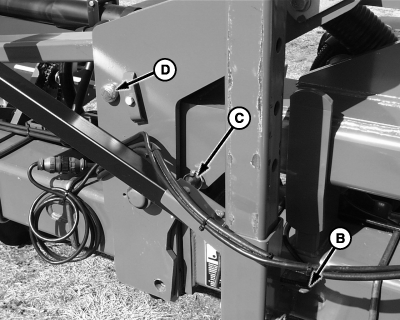

A47274
A47274-UN-02APR01

A - Limited Flex Position

B - Storage Position

C - Wing Locked Position

D - Storage Position



To Flex Up Only

NOTE: Follow procedure on both sides of machine.

Place flex pin in limited flex position (A), through frame only.

IMPORTANT: Shaft couplers or transmission cotter pin will fail if arm moves up.

Remove wing lock pin from storage position (B) and place in wing locked position (C).

Place rigid lock pin in storage position (D).

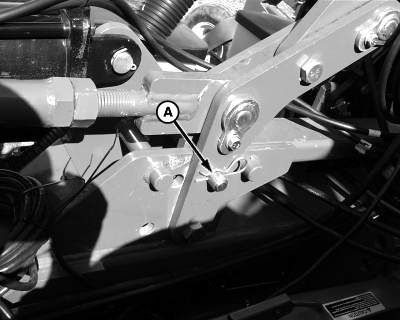

A47273
A47273-UN-02APR01

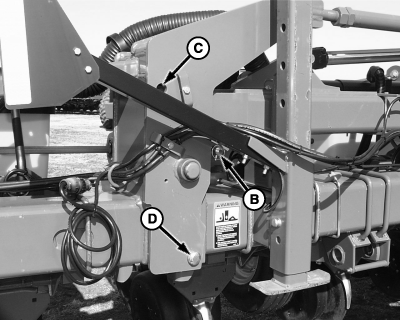

A47275
A47275-UN-02APR01

A - Rigid Position

B - Wing Locked Position

C - Storage Position

D - Rigid Lock Position



No Flex—Rigid Frame

NOTE: Follow procedure on both sides of machine.

Place flex pin in rigid position (A), through frame and pivot arm.

Place wing lock pin in wing locked position (B).

IMPORTANT: Shaft couplers or transmission cotter pin will fail if fold joint moves.

Remove rigid lock pin from storage position (C) and place in rigid lock position (D).

OUO6045,0000081-19-20081211
