Adjust Closing Wheel Spacing
NOTE: Closing wheels can be adjusted to match soil conditions and depth of planted seeds. Use standard (wide) spacing for majority of planting conditions. For planting small seeds at shallow depth, use narrow spacing.

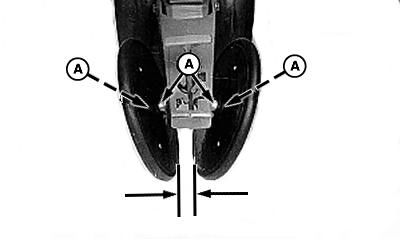

A46774-UN-13OCT00

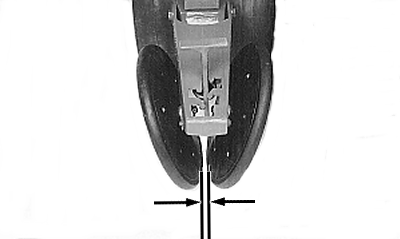

A46775-UN-12OCT00
A - Nuts and Spacers
To change spacing, remove nuts and spacers (A). Install closing wheels with spacers located to the outside (for narrow spacing) or to the inside (for wide spacing).|
OUO6064,0000249-19-20100813 |
