Hydraulic Connections Recommendations

A64361-UN-11MAR09

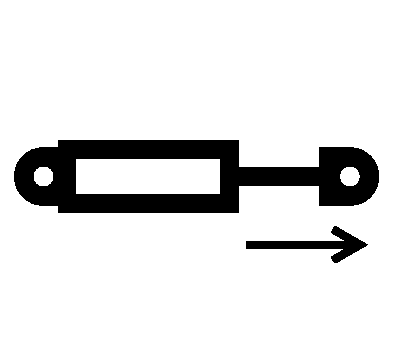

Extend Symbol

A64362-UN-11MAR09

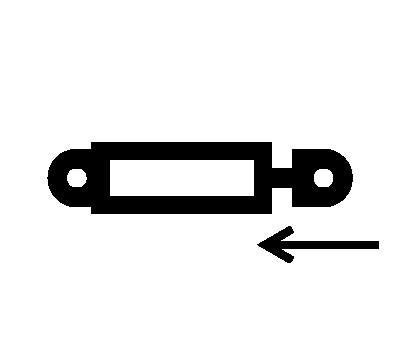

Retract Symbol

Extend and Retract symbols are on SCV cover.

Refer to tractor operator's manual for specific hydraulic operational details.

IMPORTANT: Case drain hose MUST be attached PRIOR to any hose being connected.

Hose Connections1				Function Settings For John Deere Tractors
Hose Identification	SCV	Pressure	Return	Flow	Detent (Time)
Lift Assist Wheels23 (If Equipped)	I	Extend	Retract	Start at 5 and adjust as necessary	10 seconds or as required for full extend and retract
Independent Markers	II or III	Extend	Retract	10 Maximum	10 seconds or as required for full extend and retract
CCS System	III	Retract	Extend	10 Maximum	Constant “C” CCS level controlled with CCS valve
Wing Fold	III	Extend	Retract	Start at 5 and adjust as necessary	10 seconds or as required for full extend and retract
Vacuum System (Connected to one SCV)4	IV	Retract	Extend	Adjust to obtain desired vacuum level	Constant “C”
Variable Rate Drive on SCV	V	Retract	Extend	10 Maximum	Constant “C”
Variable Rate Drive on Power Beyond with Load Sense5		Power Beyond Pressure	Power Beyond Return

CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age, and exposure. Check hoses regularly. Replace damaged hoses.

IMPORTANT: Vacuum and Variable Rate Drive RETURN hoses, with special tip, MUST be connected to tractor EXTEND port. Avoid damaging pressure spikes; shut vacuum motor and variable rate drive off by placing SCV lever in “Float” position.

16R Non-Lift Assist Wheel planters, connect the wing lift (gullwing) pressure hose to the hitch port, or an unused SCV. SCV must be placed in “Float” position.

7000 and 8000 Series Tractors:

A diverter valve is available to connect independent markers and wing fold on one SCV.

SeedStar™ system is used to control variable rate drive (if equipped).
