Disconnect Pneumatic Down Force Air Compressor Remote Air Filter Hose (16 Row Machines)

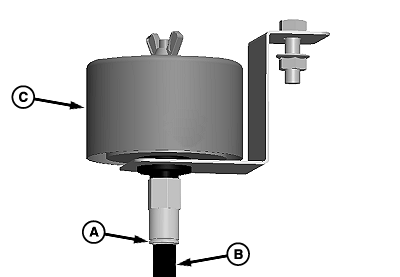

  1. A71715
    A71715-UN-03JUN11

    A - Ring

    B - Filter Hose

    C - Air Filter Assembly

    Push in ring (A) on fitting and remove filter hose (B) from air filter assembly (C).

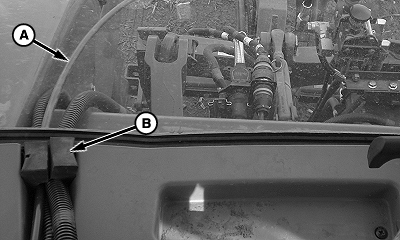

  2. A71716
    A71716-UN-03JUN11

    Remove filter hose (A) from tractor rear window grommet (B).


  3. IMPORTANT: To avoid damage or crushing to the filter hose secure in a location away from pinch points on machine.

    Coil filter hose (A) and secure to machine.

OUO6064,00004FF-19-20110603
