Information Signs—1720CCS

A72785-UN-31JAN12

A74097-UN-26JAN12

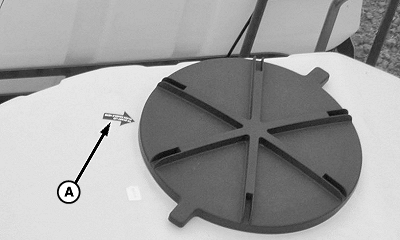

A - Decal, Lid Index

(See OPERATING TANK LIDS in Central Commodity System section.)

A71384-UN-06MAY11

A71439-UN-11MAY11

A - Decal, Case Drain

FAN MOTOR CASE DRAIN LINE.

THIS HOSE MUST BE CONNECTED DURING FAN OPERATING OR FAN MOTOR FAILURE WILL RESULT.

(See LOW PRESSURE CASE DRAIN CONNECTION in Prepare Tractor section.)

A72780-UN-31JAN12

Front Side

A72781-UN-31JAN12

Back Side

A74095-UN-26JAN12

A - Decal, Fertilizer Pump

LUBRICATION 1. PUMP IS SHIPPED FILLED WITH OIL. AT INITIAL START-UP AND DAILY AFTERWARDS, CHECK OIL LEVEL. 2. SINGLE PISTON PUMP: FILL WITH TY6296 SAE 80/90 W EP GEAR OIL OR EQUIVALENT TO OIL PORT LEVEL. 3. DOUBLE PISTON PUMP: FILL BOTH CAVITIES WITH NON-DETERGENT SAE 30 OIL TO CHECK PLUG LEVEL. 4. FILL PUMP LUBE FITTINGS WITH MULTIPURPOSE GREASE EVERY 10 HOURS OF RUNNING.

PREVENT DAMAGE TO PUMP 1. KEEP PUMP FILLED WITH FLUID AT ALL TIMES. 2. PROTECT FROM FREEZING - SEE STORAGE INFORMATION BELOW. 3. REMOVE DRIVE CHAIN WHEN NOT IN USE.

OVERNIGHT STORAGE ABOVE FREEZING TEMPERATURES 1. CLEAR LIQUIDS WITH STEADY OR RISING TEMPERATURES: LEAVE PUMP AND HOSES FILLED WITH SOLUTION. 2. CLEAR LIQUIDS WITH FALLING TEMPERATURES (SOLUTION MAY PRECIPITATE OUT): FILL PUMP WITH WATER AND LEAVE FILLED. (DO NOT ADMIT AIR). 3. SUSPENSION FERTILIZER: THIS SYSTEM NOT RECOMMENDED FOR USE WITH SUSPENSION FERTILIZERS.

EXTENDED STORAGE (OVER 1 WEEK) INCLUDING WINTER STORAGE REFER TO FRAME DECAL AND OPERATORS MANUAL

IMPORTANT

PUMP PRIMING 1. OPEN SHUTOFF VALVE AT TANK AND STRAINER. 2. SET PUMP AT MAXIMUM RATE. 3. HIGH PRESSURE SYSTEM WITH UNIT MOUNTED SINGLE DISK FERTILIZER OPENERS: DISCONNECT ONE OPENER HOSE UNLESS USING NO. 12 NOZZLES. MAY SKIP THIS STEP WHEN PRIMING HIGH PRESSURE SYSTEM AT APPLICATION RATE AND TRAVEL SPEED FOR NOZZLE IN USE. HIGH PRESSURE SYSTEM WITH ORIFICES: REMOVE ONE ORIFICE UNLESS USING LARGEST ORIFICE. ALSO, MAY CRACK MANIFOLD VALVE IF AVAILABLE ON SYSTEM. LOW PRESSURE FLOW DIVIDER SYSTEM: NO ACTION REQUIRED. 4. PARTIALLY FILL TANK WITH WATER AND CHECK SYSTEM FOR LEAKS. 5. LOWER MACHINE TO PLANTING POSITION AND DRIVE 90—180 METERS (100—200 YARDS) AT PLANTING SPEED. 6. FULLY CHARGE SYSTEM TO ELIMINATE ALL AIR BUBBLES. AIR BUBBLES PREVENT EVEN APPLICATION. REPEAT STEPS 5 AND 6 UNTIL ALL AIR BUBBLES ARE FLUSHED FROM LINES. 7. REMOVE STRAINER SCREEN AND CHECK FOR FOREIGN MATERIAL. CLEAN IF NECESSARY. 8. RE-CONNECT HOSE, CLOSE VALVES, OR RE-INSTALL ORIFICE REMOVED IN STEP 3. 9. SELECT FERTILIZER RATE USING RATE CHARTS. 10. FOR ANY DELAYED RE-START, CHECK APPLICATION LINES FOR AIR BUBBLES AND PRIME SYSTEM AS NECESSARY.

(See PRIMING AND INITIAL START UP OF PUMP in Liquid Fertilizer—Piston Pump section.)

A72784-UN-31JAN12

A74096-UN-26JAN12

A - Decal, Air Tank Drain

DRAIN MOISTURE FROM AIR TANK DAILY.

(See DRAIN AIR STORAGE TANK in Integrated Pneumatic Down Force section in your SeedStar™ 2 and SeedStar™ XP Monitor Manual.)

A71412-UN-05MAY11

A - SCV Number

B - Flow Direction

C - Flow Direction

(A) Identifies tractor SCV circuit to connect too.

(B and C) Identifies “flow direction” and connects to the matching ports on the tractor.
