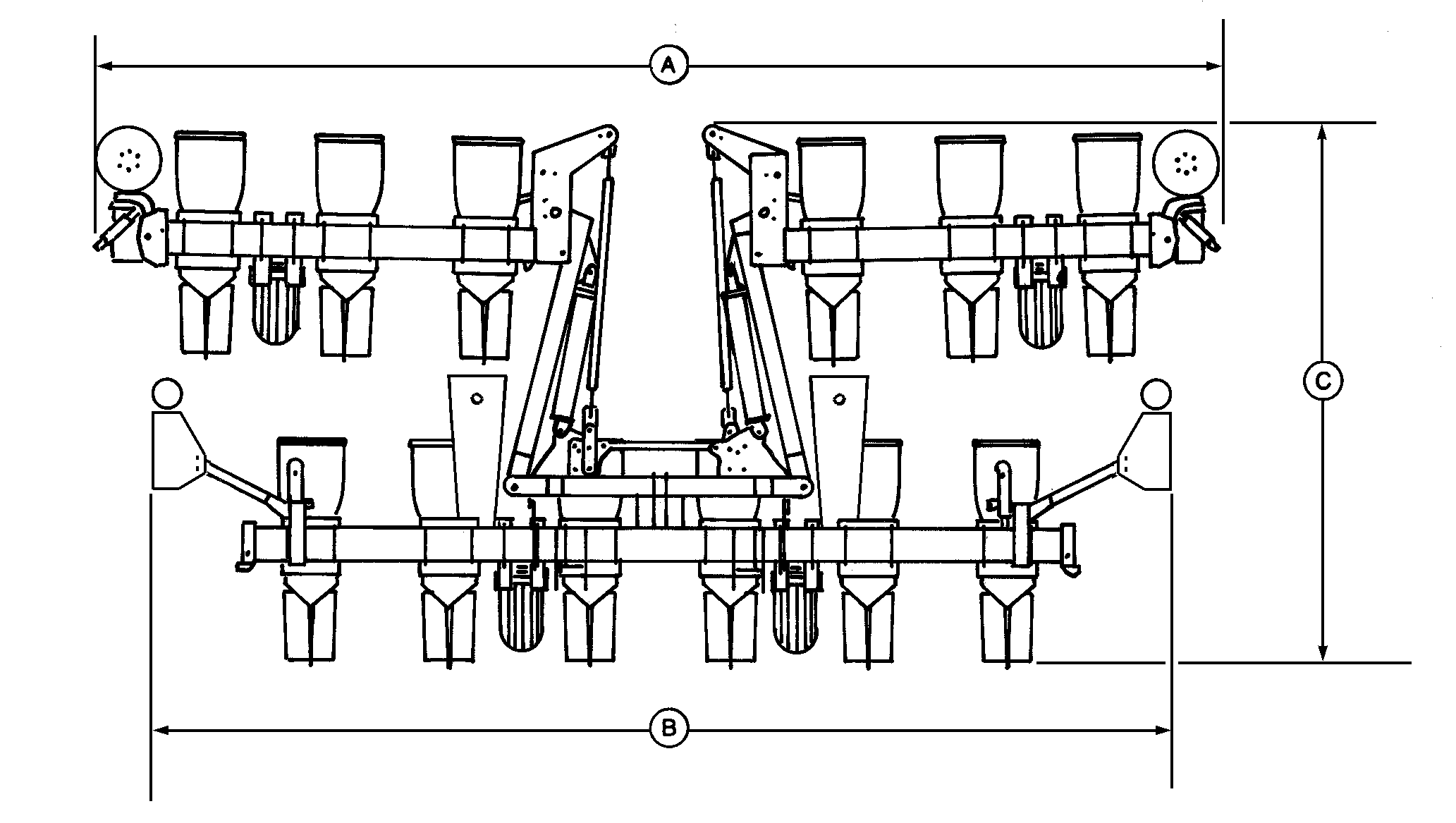

1720—Hitch Raised
A44795-UN-07APR98
|
Machine |
Row Spacing |
Dimension "A" Without Markers1 |
Dimension "B" |
Dimension "C" |
|---|---|---|---|---|
|
8-Row |
91 cm (36 in.) |
3.9 m (12 ft 9 in.) |
5.1 m (16 ft 8 in.) |
3.4 m (11 ft 2 in.) |
|
8-Row |
96 to 102 cm (38 to 40 in.) |
4.6 m (15 ft 2 in.) |
5 m (16 ft 5 in.) |
3.4 m (11 ft 2 in.) |
CAUTION: Serious injury or death can result from contact with
electric lines. Use care when moving or operating this machine near
electric lines to avoid contact.
|
1 On 4960
Tractors with 18.4R-46 rear tires with hitch pin 1067 mm (42 in.)
off ground.
|
OUO6074,000030B-19-20010402 |
