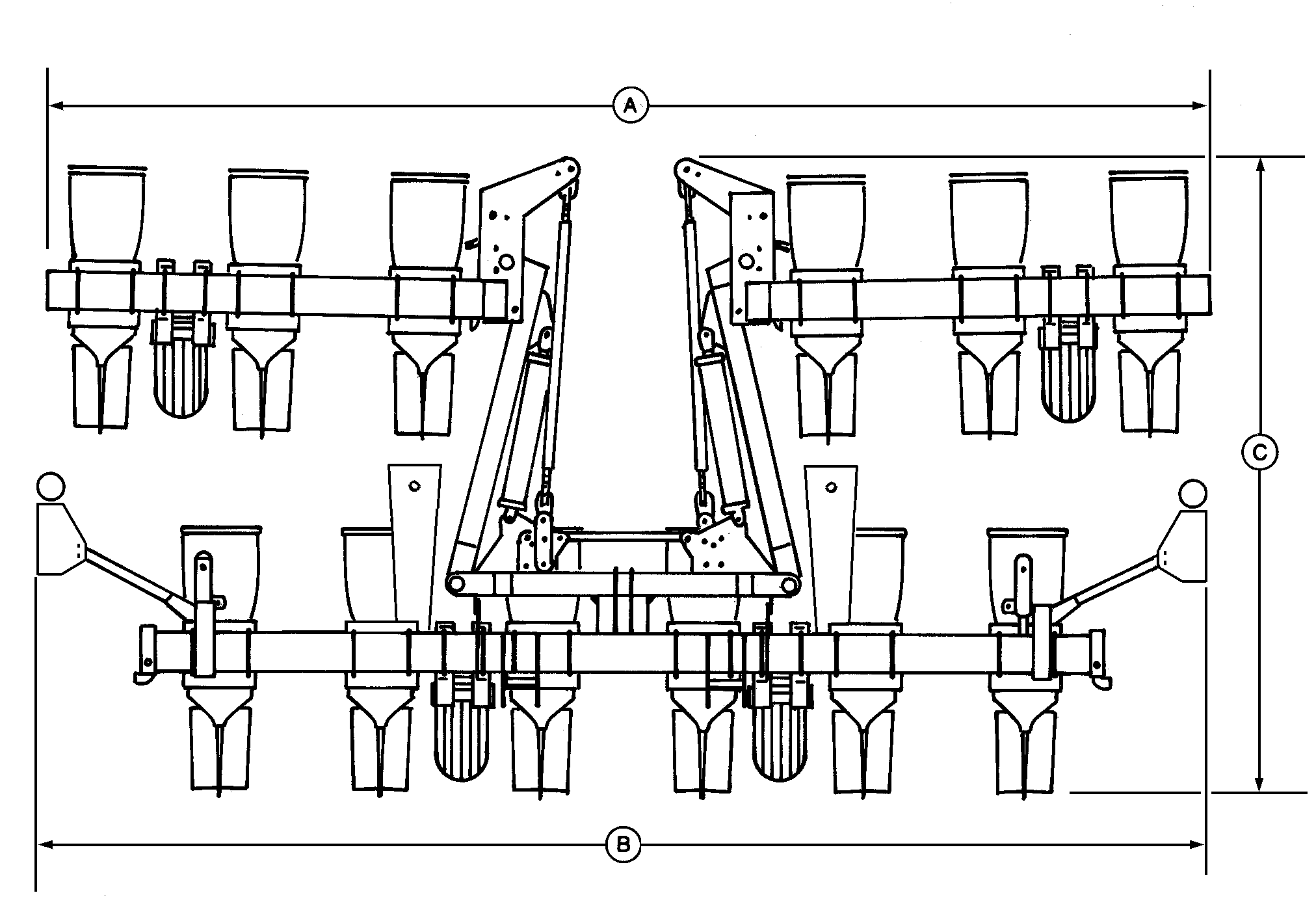

1720—Hitch Raised
A44794-UN-07APR98
A - Dimension, Without Markers
B - Dimension
C - Dimension
|
Machine |
Row Spacing |
Dimension "A" Without Markers1 |
Dimension "B" |
Dimension "C" |
|---|---|---|---|---|
|
12-Row |
76 cm (30 in.) |
5.5 m (18 ft 1 in.) |
5.5 m (18 ft 1 in.) |
3.6 m (11 ft 10 in.) |
|
16-Row |
76 cm (30 in.) |
7.3 m (23 ft 8 in.) |
7 m (23 ft 2 in.) |
4 m (13 ft 2 in.) |
CAUTION: Serious injury or death can result from contact with
electric lines. Use care when moving or operating this machine near
electric lines to avoid contact.
|
1 On 4960
Tractors with 18.4R-46 rear tires with hitch pin 1067 mm (42 in.)
off ground.
|
