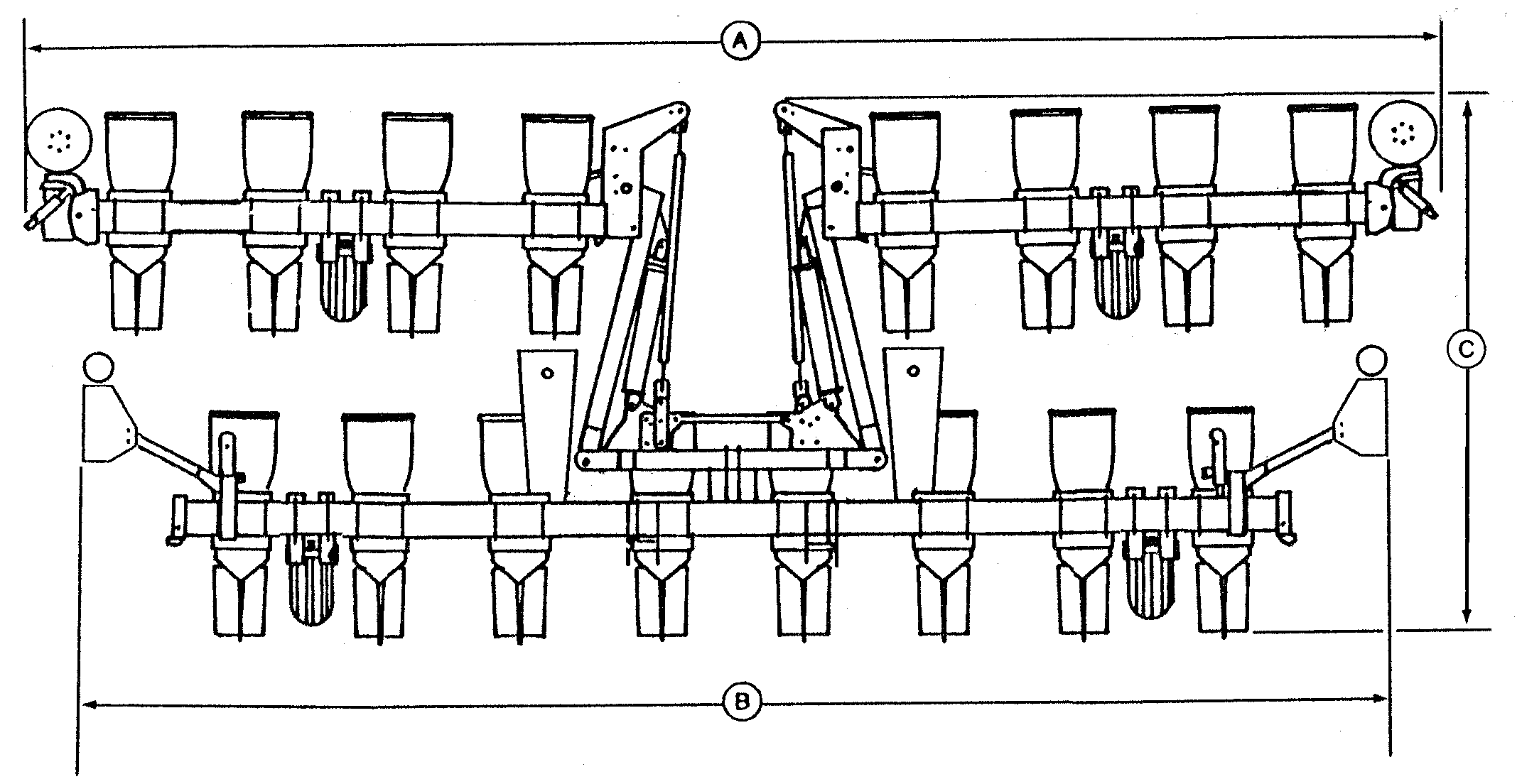

1720—Hitch Lowered

A48660-UN-19MAR02

Machine	Row Spacing	Dimension "A" With Markers	Dimension "B"	Dimension "C"
16-Row	76 cm (30 in.)	8.1 m (26 ft 8 in.)	7.2 m (23 ft 2 in.)	3.6 m (11 ft 10 in.)

CAUTION: Serious injury or death can result from contact with electric lines. Use care when moving or operating this machine near electric lines to avoid contact.
