Operating CCS System When Planting Sorghum and Small Popcorn

  1. IMPORTANT: Remove nozzle inserts (A) before switching to crop with larger seed. Larger seed will not come out of tanks with nozzle inserts installed. Tanks will then have to be drained, nozzle inserts removed, and refilled.

    NOTE: Cotton seeds that are especially small in size can require nozzle inserts and discharge elbows.

    NOTE: See SETTING CCS TANK PRESSURE for application requirements.

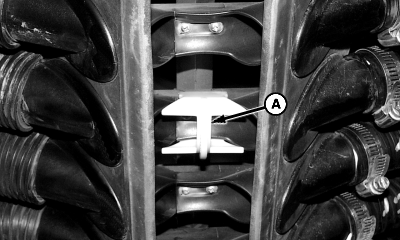

    A50710
    A50710-UN-17OCT02

    Nozzle Inserts

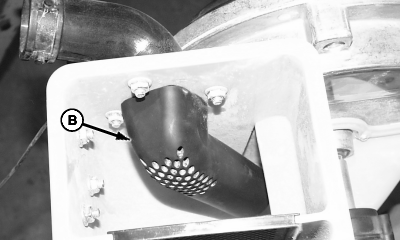

    A51047
    A51047-UN-08NOV02

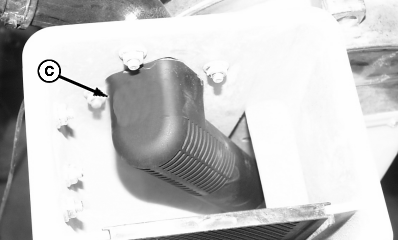

    A51048
    A51048-UN-08NOV02

    Elbow - Sorghum

    A - Nozzle Inserts (A73214)

    B - Elbow (A75164)

    C - Elbow (Sorghum) (A75165)

    Install nozzle inserts (A) over all nozzles prior to filling tank.


  2. Remove elbow (B) with small holes from mini hoppers.

  3. Install elbow (C) with slotted holes in mini hoppers.

OUO6074,0000878-19-20110517
