Adjust Meter Chain Drive

1. NOTE: It can be necessary to align sprockets with drive mechanism on meter.


   A54235-UN-07APR04


   A54236-UN-07APR04

   Drives Out Of Alignment


   A54237-UN-07APR04

   Drives In Alignment

   A - Nuts

   B - Drive Lugs

   C - Meter Tabs

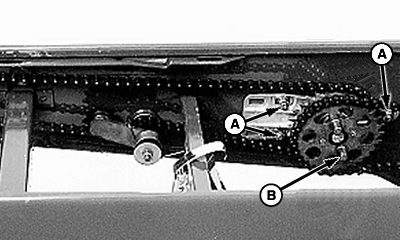

   Loosen nuts (A) and adjust sprocket assembly so drive lugs (B) align with meter tabs (C).

---




2. Install hoppers. Use a small mirror to check alignment of drives.

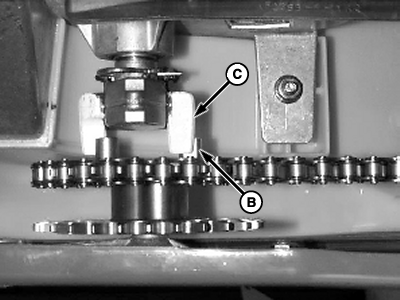

   • When meter drive is misaligned, drive lugs (B) can be seen outside meter tabs (C) as shown.

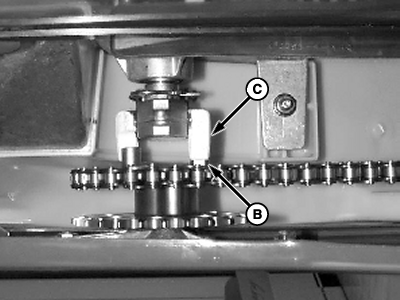

   • When meter drive is properly aligned, drive lugs (B) and meter tabs (C) are in line as shown.
