1720 Machines

A44800-UN-07APR98

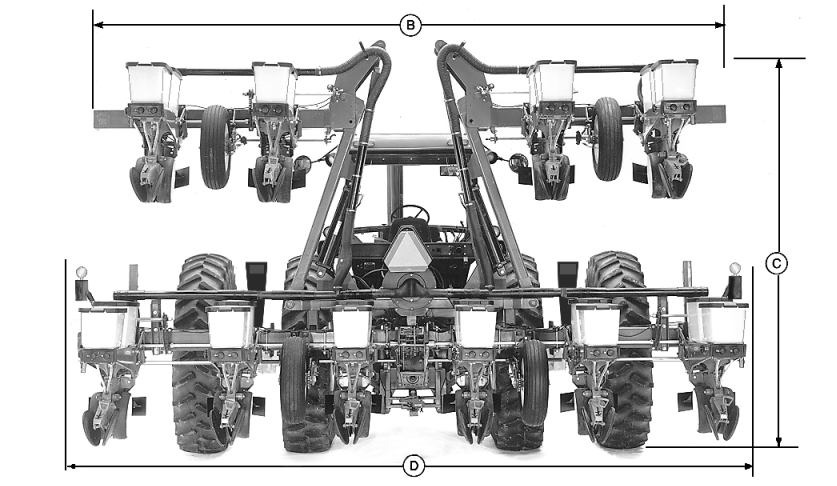

Machine	Row Spacing	Dimension "B"	Dimension "C" (with out Markers)1	Dimension "D"
10-Row	91 cm (36 in.)	4.6 m (15 ft 2 in.)	4.1 m (13 ft 5 in.)	5.9 m (19 ft 6 in.)
10-Row	97 to 102 cm (38 to 40 in.)	5.7 m (18 ft 9 in.)	4.1 m (13 ft 5 in.)	6.3 m (20 ft 8 in.)

CAUTION: Serious injury or death can result from contact with electric lines. Use care when moving or operating this machine near electric lines to avoid contact.

NOTE: Transport height will go over 4.3 m (14 ft) with markers.

Folded machines without markers can pass under a 3.7 m (12 ft) high shed door for storage by lowering the hitch.
